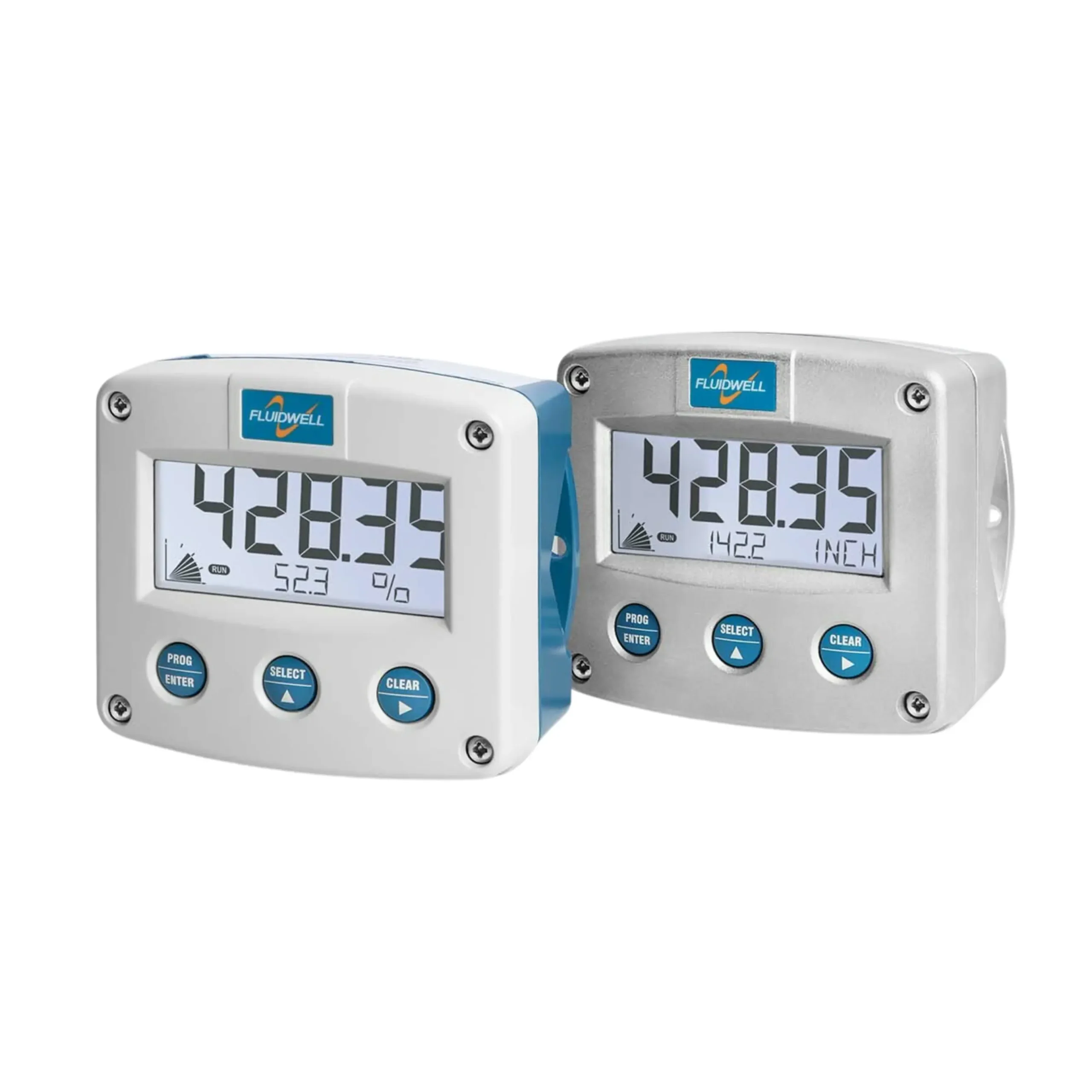

F070 Safe area / Intrinsically safe – Level Indicator
The F070 is a straight forward level indicator with large 26mm (1″) high digits. It can be set to display the level as a quantity, height or percentage.

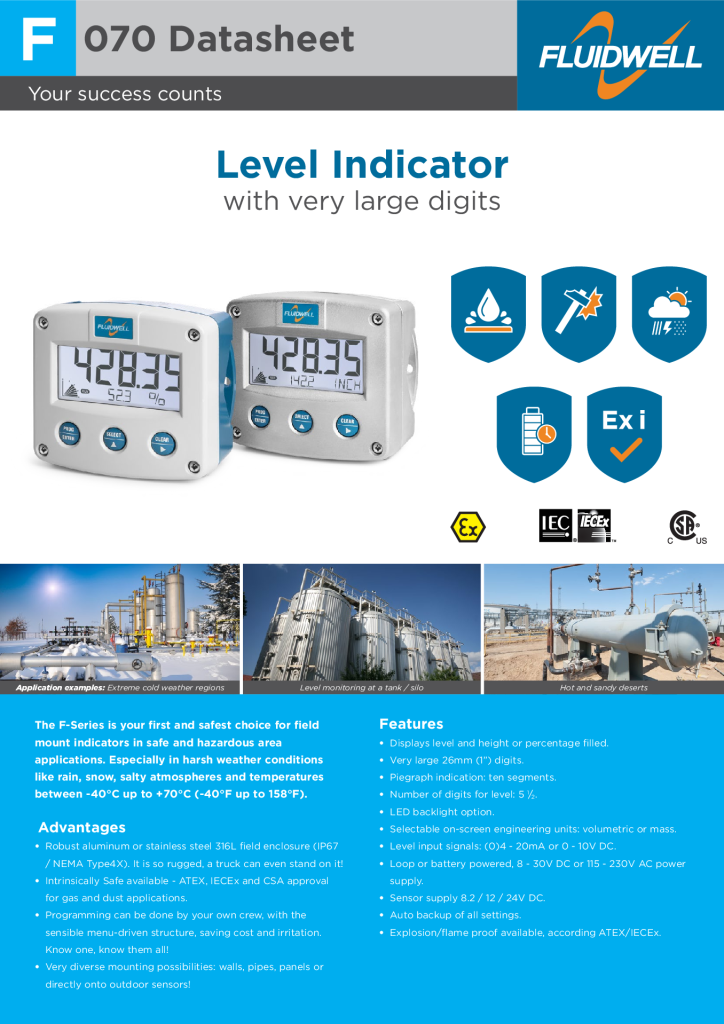

Datasheet
Measure. Monitor. Repeat.
For better insights, better decision-making and better process performance.
Key Features & Benefits
- Displays level and height or percentage filled.
- Very large 26mm (1″) high digits for level.
- Selectable on-screen engineering units for level: ml, L, m³, GAL, USGAL, kg, lb, bbl or no unit.
- Selectable on-screen engineering units for height: mm, cm, m, mtr, inch, ft, mmwk, mmwc, cmwk, cmwc, mwk, mwc, inwc, ftwc, mBar, Bar, PSI or no unit.
- Number of digits for level: 5½.
- Piegraph indication: ten segments.
- LED backlight with adjustable intensity.
- Intrinsically safe according ATEX, IECEx and CSA C-US.
- GRP, Aluminum or high grade stainless steel enclosure.
- Auto backup of settings in EEPROM memory.
- Easy configuration with clear alphanumerical display.
- Ambient temperature: -40°C to +70°C (-40°F to 158°F).
Typical Applications
- Applications where a basic level measurement display is required without level monitoring, linearization or signal re-transmission.
- The F-Series is your first and best choice for field mount indicators in safe and hazardous area applications. Especially in harsh weather conditions like rain, snow, sandy deserts, salty atmospheres and temperatures between -40°C up to +70°C (-40°F up to 158°F).
Advantages
- Robust aluminum or stainless steel 316L field enclosure (IP65, IP67 / NEMA Type4X) .
It is so rugged, a truck can even stand on it! - Intrinsically Safe available - ATEX, IECEx and CSA approval for gas and dust applications.
- Familiar easy operation with the Fluidwell "Know one, know them all" configuration structure, saving time, cost and aggravation.
- Very diverse mounting possibilities: walls, pipes, panels or directly onto outdoor sensors.
| Category | Function / Description | Type / Details |
|---|---|---|
| Signal Inputs | Level Inputs |
(0)4–20mA 0–10V DC |
| Alarm / Analog Outputs | None | |
| Supply | Power Supply |
Long life Lithium battery. 4–20mA input Loop-powered. 8–24V AC/DC. 115–230V AC. Basic: 8–30V DC |
| Sensor Supply | 8.2V, 12V, 24V DC | |
| Hazardous Area – Intrinsically Safe |
ATEX: Gas: II 1 G Ex ia IIC T4 Ga Dust: II 1 D Ex ia IIIC T200 100 °C Da IECEx: Gas: Ex ia IIC T4 Ga Dust: Ex ia IIIC T200 100 °C Da CSA: I.S. Class I/II/III, Div 1, Grp A…G, T4; Class I, Zone 0, AEx ia IIC T4 Ga Note: Extended aluminum enclosures not available with CSA/FM approval. | |
| Explosion Proof |
ATEX/IECEx: Gas: II 2 G Ex db IIB+H2 T5 Gb Dust: II 2 D Ex tb IIIC T80°C Db | |
| Communication |
Modbus communication available on F1-Series products. HART communication available with F018 Flow rate Monitor / Totalizer. | |
