FlowSwitch FS 510M

Name: FlowSwitch FS 510M
Brand: MUTEC
Availability: InStock

The FlowSwitch FS 510 is based on modern microwave technology. If material passes the sensor, the emitted microwaves are reflected. This is converted into a switching process. The sensor can be installed within pipes, on conveying belts, fall plates, chutes or at similar transport facilities.

It allows safe identification of flow / no-flow, inadequate or missing material, plugs, blockage or standstill – from several meters distance. It does not impact the bulk material and is wear- and maintenance-free.

Enquire Now

Measures: Dust, Flow, Level, Moisture, Solids

Industries: Animal Feed, Manufacturing, Pharma, Wood

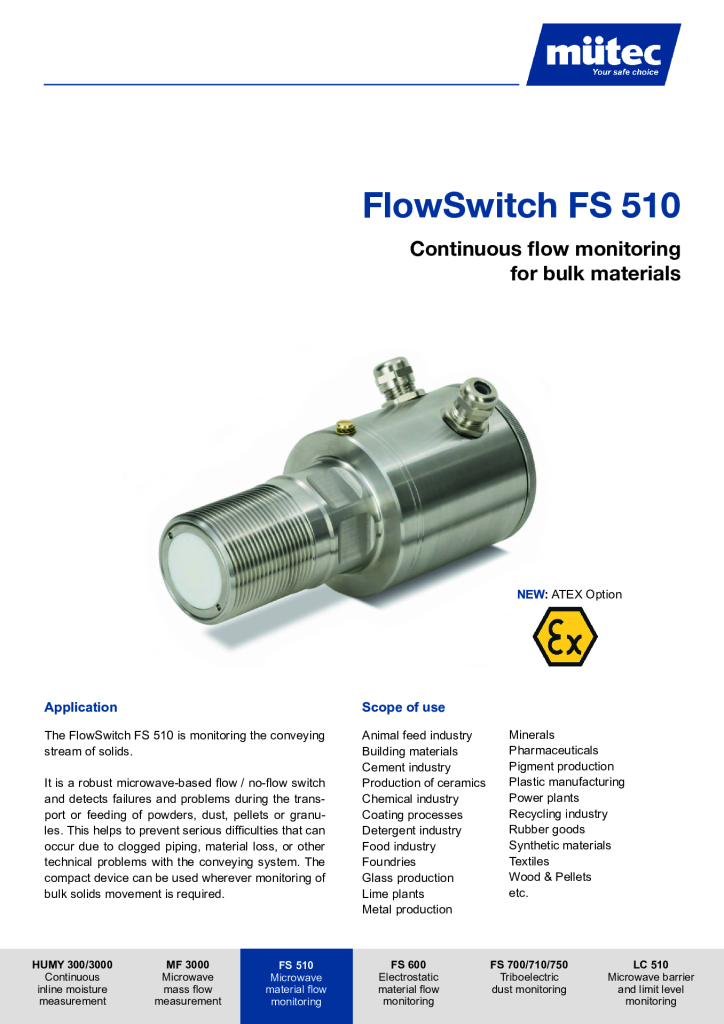

Brochure

Measure. Monitor. Repeat.

For better insights, better decision-making and better process performance.

Key Features & Benefits

Reliable, contactless microwave measurement
Works within several meters distance
Does not interfere with the material
Very sensitive and flexible with adjustable amplification, filter, hysteresis, delay, min/max
Compact and easy to install and retrofit
Wear- and maintenance-free
Robust stainless steel design
100% safe operation with active self-monitoring
ATEX protection (optional up to zone 20/21)

FS 510M

Typical Applications

Pneumatic conveying systems for bulk solids
Powder, dust, pellet, and granule transport lines
Material feeding systems
Clogged or blocked pipe detection
Loss-of-material monitoring in conveying lines
Bulk solids handling and processing plants
Industrial conveying and transfer systems

Product Description
Technical Data
Videos & Downloads

Function

The FlowSwitch FS 510 is based on modern microwave technology. If material passes the sensor, the emitted microwaves are reflected. This is converted into a switching process. The sensor can be installed within pipes, on conveying belts, fall plates, chutes or at similar transport facilities.

More info

It allows safe identification of flow / no-flow, inadequate or missing material, plugs, blockage or standstill – from several meters distance. It does not impact the bulk material and is wear- and maintenance-free. All parameters, like sensitivity, damping, filter time and hysteresis are adjustable, and the sensor can easily be adapted to any use.

The FlowSwitch FS 510 is known as the most robust flow monitor of its class. It is made of stainless steel and optimized for a long lifetime. High ATEX ratings and adapters for high pressure allow use in the most difficult environment.

Parameter	Specification
Housing material	Stainless steel (1.4307)
Sensor surface	Teflon (optional ceramic)
Ambient temperature	-20°C to +60°C
Process temperature	-20°C to +85°C
Process pressure	6 bar (optional 30–60 bar)
Protection class / Ex protection / ATEX	IP65, Optional up to Zone 20/21
Power supply	24 VDC (18–30 VDC)
Current consumption	Ca. 80 mA at 24 VDC
Transmitting power	10 dBm
Output (switching)	1 × Relay contact (change-over, potential-free) 1 × NO ready contact
Switching voltage	30 VAC or 30 VDC
Switching current	Min. 10 μA, Max. 2 A
Switching power	30 VA or 30 W
Electrical connection	Plug-in screw terminals
Adjustable parameters	Amplification, filter, hysteresis, delay, min/max switches
Parameterization	Direct at device via buttons
Indicators	LED green (working) LED yellow (switch) Bar graph (e.g. field intensity)
