FlowSwitch FS 550M
The FlowSwitch FS 550 is based on the latest microwave technology. When a material passes the sensor, the emitted microwaves are reflected. This is converted into a flow-proportional output signal for trend measurement.
The sensor can be installed in pipelines, on conveyor belts, on drop plates, on chutes, behind screws or in similar conveying equipment. It enables reliable detection of the material flow and detects insufficient or missing material, clogging or standstill – from a distance of several meters. It does not come into contact with the bulk material and is wear- and maintenance-free.

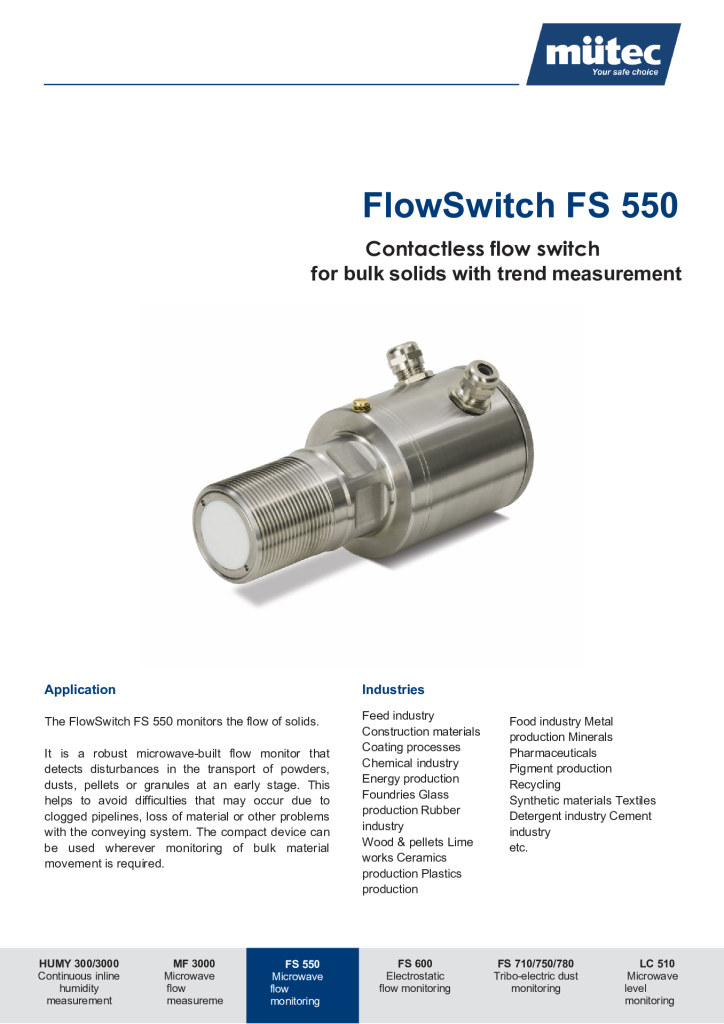

Brochure
Measure. Monitor. Repeat.
For better insights, better decision-making and better process performance.
Key Features & Benefits
- Reliable, non-contact microwave measurement
- Works within several meters distance
- No impairment of the bulk material
- Very sensitive and responsive
- Flexible due to adjustable gain, filter,
- Easy to install and retrofit
- Wear and maintenance free
- Rugged stainless steel construction
- 100 % safe operation due to active self-monitoring
Typical Applications
- Monitoring flow of powders, dusts, pellets, or granules
- Detecting disturbances in bulk material transport
- Early detection of clogged pipelines
- Preventing material loss in conveying systems
- Monitoring bulk solids movement in industrial processes
- Suitable for conveying lines and material feeding systems
Function
The FlowSwitch FS 550 is based on the latest microwave technology. When a material passes the sensor, the emitted microwaves are reflected. This is converted into a flow-proportional output signal for trend measurement. The sensor can be installed in pipelines, on conveyor belts, on drop plates, on chutes, behind screws or in similar conveying equipment.
More info
It enables reliable detection of the material flow and detects insufficient or missing material, clogging or standstill - from a distance of several meters. It does not come into contact with the bulk material and is wear- and maintenance-free. Numerous parameters, such as sensitivity and filter time, are adjustable, and the sensor can be easily adapted to any application.

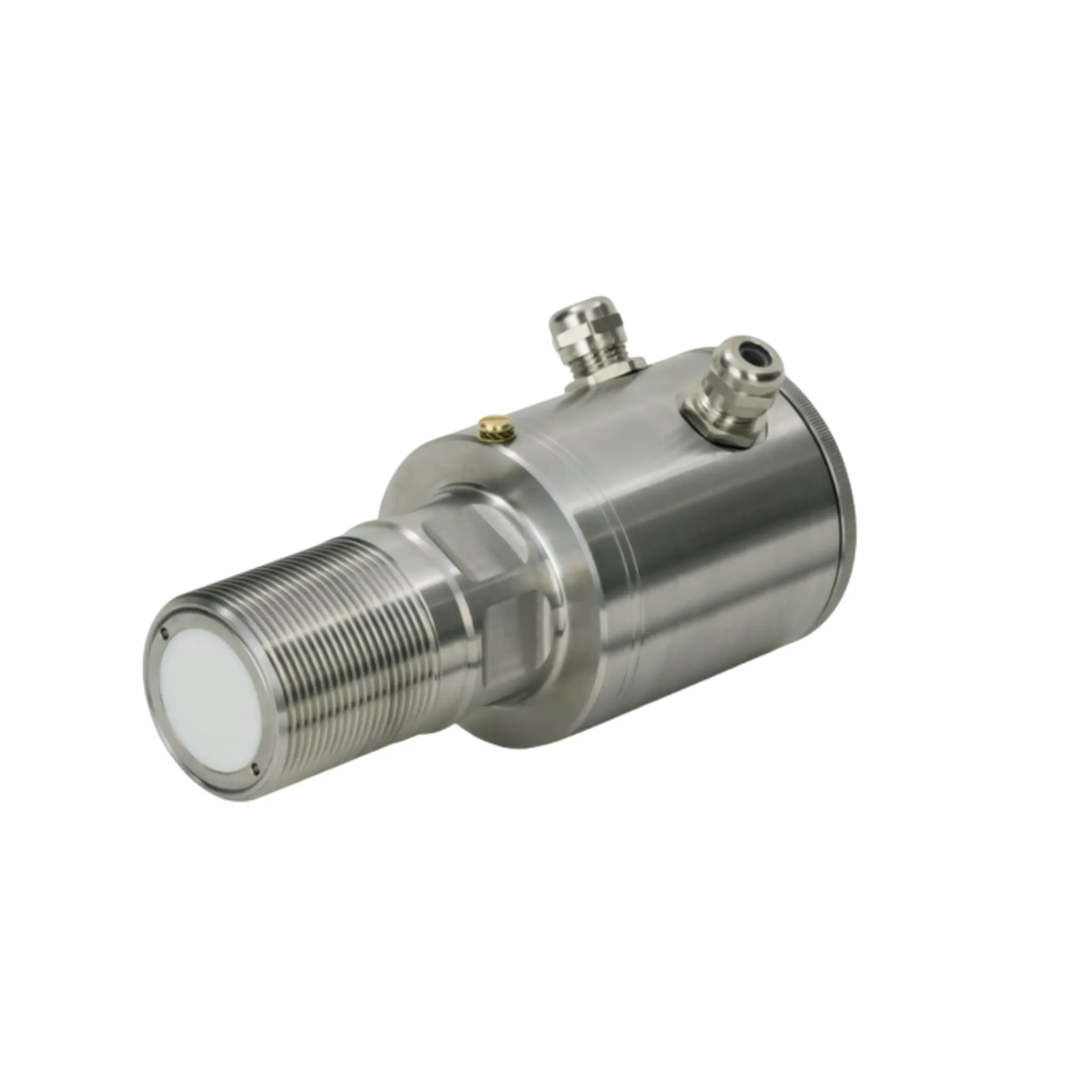

The FS 550 is known as the most robust flow switch in its class. It is constructed of high quality stainless steel and is optimized for long life. High pressure adapter allows use in the most challenging environments.
| Parameter | Specification |
|---|---|
| Housing material | Stainless steel (1.4307) |
| Sensor surface | Teflon (optionally ceramic) |
| Ambient temperature | -20°C to +60°C |
| Process temperature | -20°C to +85°C |
| Process pressure | 6 bar (optional 30–60 bar) |
| Protection class | IP65 |
| Power supply | 24 VDC (18–30 VDC) |
| Power consumption | Approx. 80 mA at 24 VDC |
| Transmitting power | 10 dBm |
| Analog output | 4–20 mA |
| Electrical connection | Pluggable screw terminals |
| Adjustable parameters | Amplification, filters |
| Parameterization | Directly on the device via keys |
| Indicators | LED green (in operation), Bar chart (e.g. field strength) |
| Max. load | 500 Ω |
