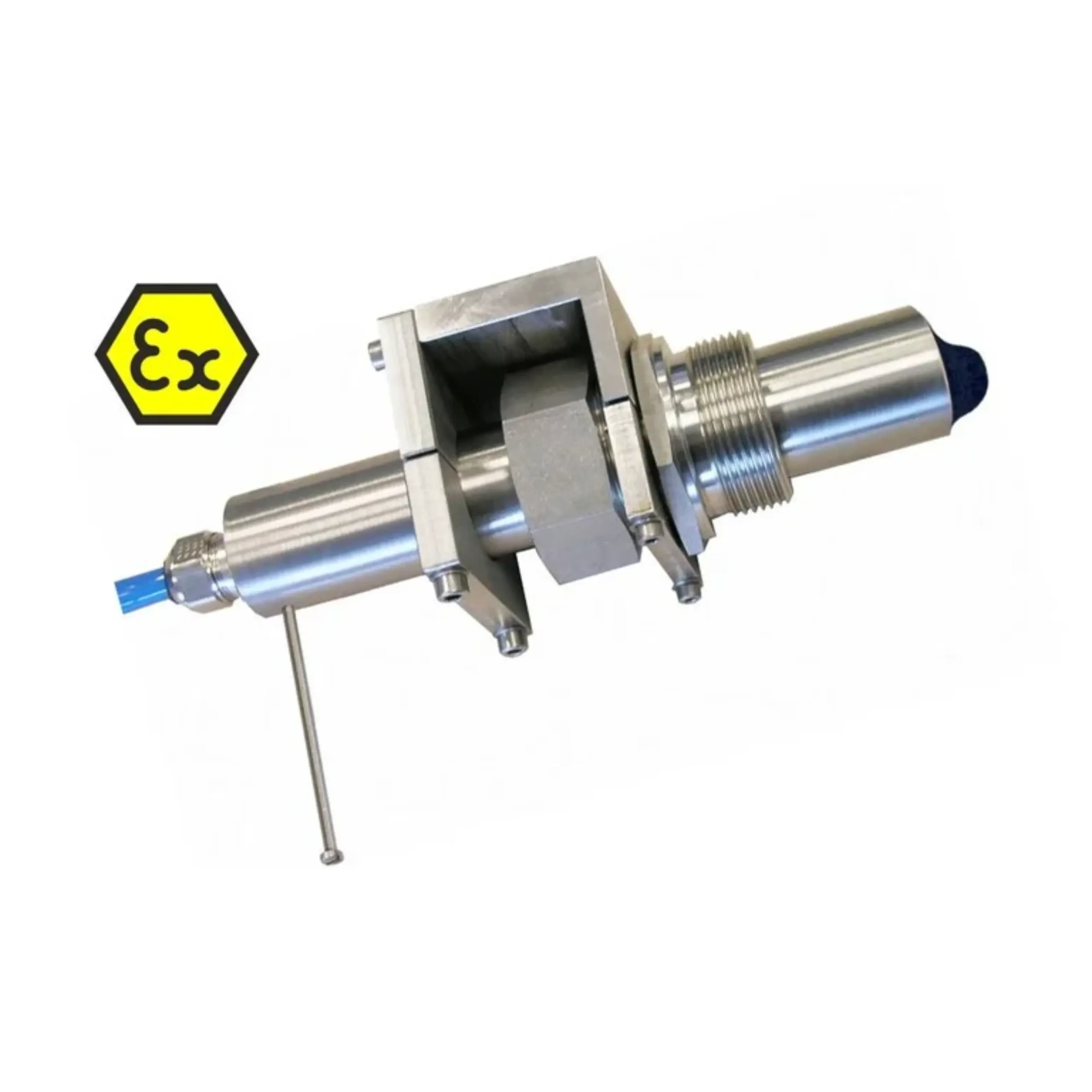

KDA Doppler Pipe Sensor
KDA flow velocity sensors are suitable for continuous measurement of slight to heavily polluted media. The pipe sensors are designed for installation in pipes from the outside using a nozzle.
Combined with transmitter types such as PCM F and without OCM F the result is a complete flow measurement system.
Technical Instruction
Measure. Monitor. Repeat.
For better insights, better decision-making and better process performance.
Key Features & Benefits
- Latest fourth-generation intelligent Doppler technology
- Cost-effective pricing
- Suitable for all channel cross sections
- Easy to install without the need for additional constructions
- Cables can be extended without any problems
- Measurement in heavily polluted and abrasive media
Typical applications for KDA pipe sensors
- Wastewater treatment plants: intake, discharge, activated sludge tank intakes, return sludge, recirculation, surplus sludge, digester discharge and flocculant dosage
- Permanent measurements on stormwater treatment facilities such as stormwater overflow tanks, rainwater sedimentation and retention tanks
- Direct discharge control, infiltration (extraneous water) or leakage detection
- Industrial wastewater networks
- and many more
Flow velocity sensor for installation in pipes
Ultrasonic sensors for flow measurement in slight to heavily polluted media. Designed for fastening in pipes using a nozzle
More info
KDA flow velocity sensors are suitable for continuous measurement of slight to heavily polluted media. The pipe sensors are designed for installation in pipes from the outside using a nozzle. Combined with transmitter types such as PCM F and without OCM F the result is a complete flow measurement system.
| Common Specifications | |
|---|---|
| Measurement principle | Doppler (flow velocity) |
| Protection | IP68 |
| Operating pressure | Max. 4 bar |
| Minimum pipe diameter | DN 100 |
| Medium-contacting materials | Stainless steel 1.4571 (pipe sensor shell) Polyurethane (cable sheath, screw joint and pipe sensor head) |
| Cable lengths | 10 / 15 / 20 / 30 / 40 / 50 / 60 / 70 / 80 / 90 / 100 m (pre-configured) Extendable upon request |
| Cable type | LiYC11Y 2 × 1.5 + 1 × 2 × 0.34 |
| Ex-Approval | ATEX: IBExU 07 ATEX 1082 Edition 1 II 2G Ex ib IIB T4 Gb |
| Sensor connection | Cable end pre-configured for connection to OCM F / FR, cable type “K” |
| Operating temperature | -40 °C to +50 °C |
| Outside cable diameter | 8.4 mm ±0.25 mm |
| Storage temperature | -40 °C to +70 °C |
| Sensor type | v-sensor with temperature compensation |
| Flow Velocity Measurement | |
| Measurement range | -600 cm/s to +600 cm/s |
| Measurement uncertainty | ±1% of measurement range end value |
| Zero point drift | Absolutely stable zero point |
| Beam angle | ±5° |
| Temperature Measurement | |
| Measurement range | -20 °C to +50 °C |
| Measurement uncertainty | ±0.5 K |
