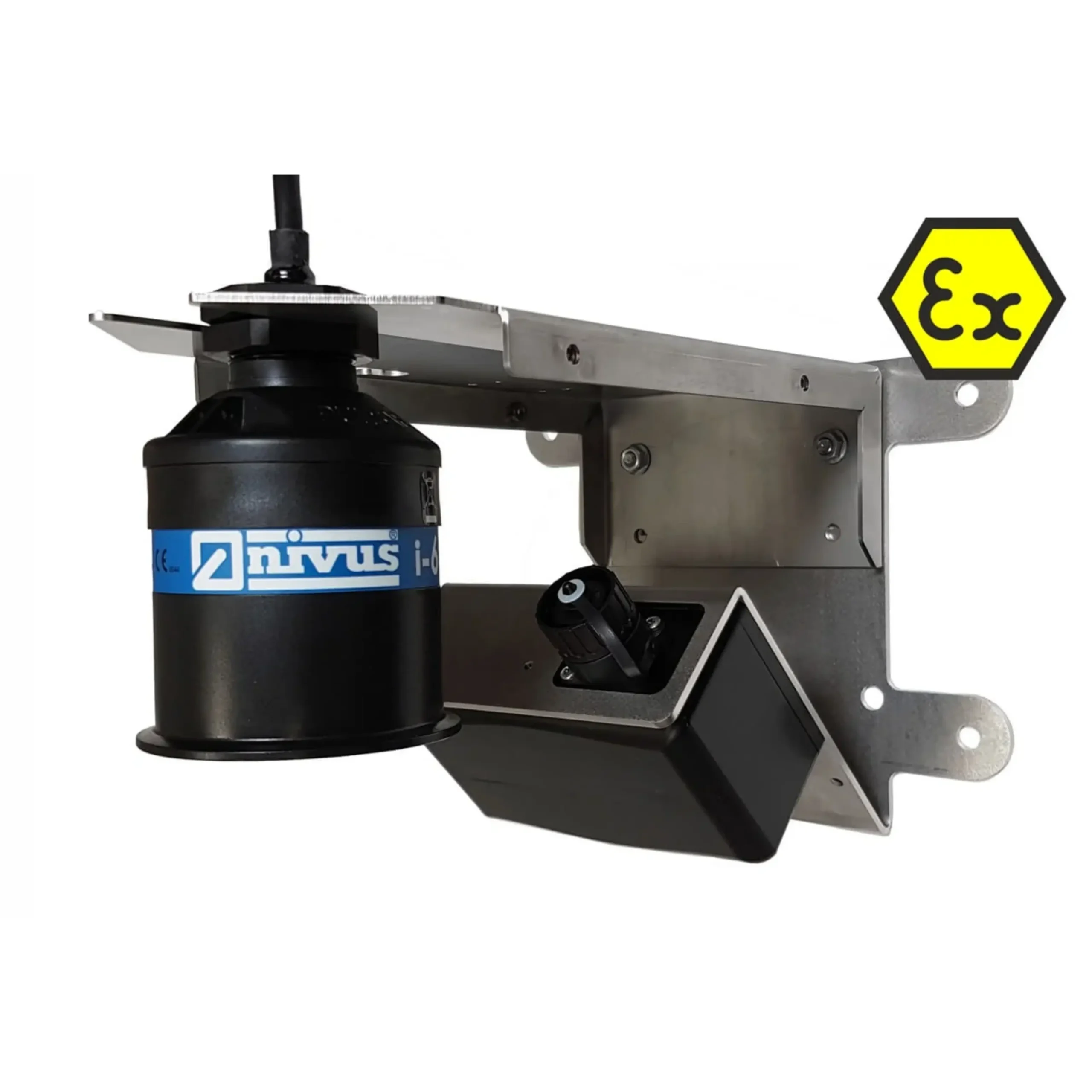

OFR Radar Sensor
By developing the OFR radar sensor in combination with our previous product range, we are capable of providing the best possible measurement solution to detect any kind of flow in each application.
Whether for measurement places with the highest accuracy requirements or for applications with difficult media, we provide easy-to-install measurement systems that achieve optimum results.
The unique combination of radar measurement and ultrasonic measurement provides previously unprecedented accuracy, covering the entire measurement range.

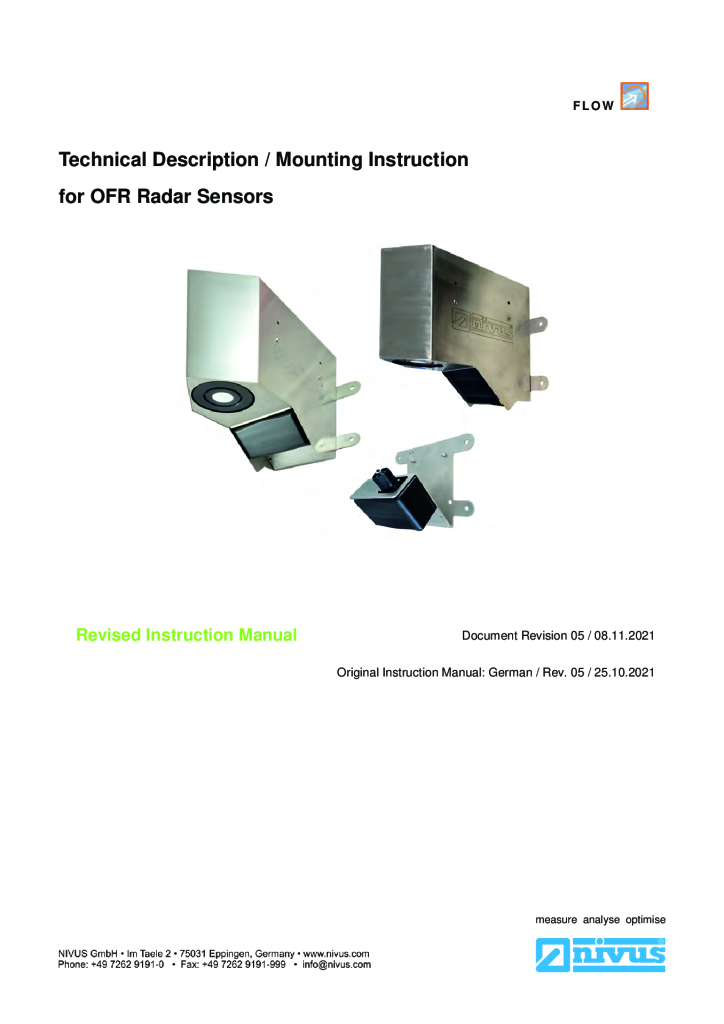

Brochure
Measure. Monitor. Repeat.
For better insights, better decision-making and better process performance.
Key Features & Benefits
- Contactless flow velocity measurement with radar technology
- Installation without interrupting processes
- Ex-Approval zone 1 optional
- Determination of surface velocity
- Low maintenance through contactless radar sensor
- Easy installation and operation
- For use in aggressive / abrasive media
- For measurement places with high pollution loads and sedimentation
- For shooting discharge and low flow level
- Improved accuracy in combination with bottom-mounted ultrasonic velocity sensors
Typical Applications
- Measuring points with high dirt load and sedimentation
- Measuring points with bed load
- If it is not possible to install sensors in the channel
- Shooting discharge at low flow levels
- Measuring points with high measurement dynamics
- Applications with risk of sedimentation

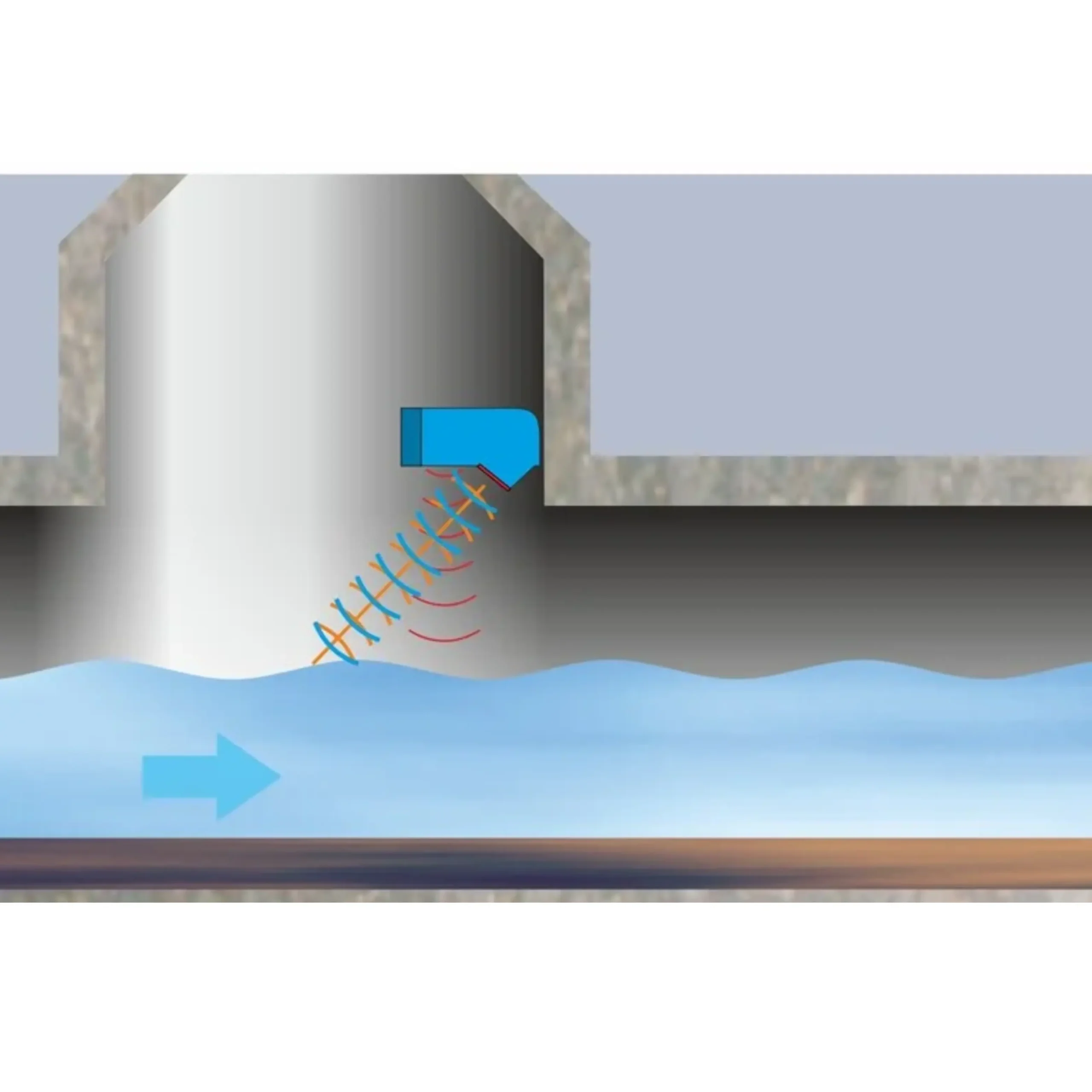

OFR Radar – contactless flow measurement
Suitable for applications featuring high velocities and low levels.
More info
By developing the OFR radar sensor in combination with our previous product range, we are capable of providing the best possible measurement solution to detect any kind of flow in each application.Whether for measurement places with the highest accuracy requirements or for applications with difficult media, we provide easy-to-install measurement systems that achieve optimum results.The unique combination of radar measurement and ultrasonic measurement provides previously unprecedented accuracy, covering the entire measurement range.
| Common Specifications | |
|---|---|

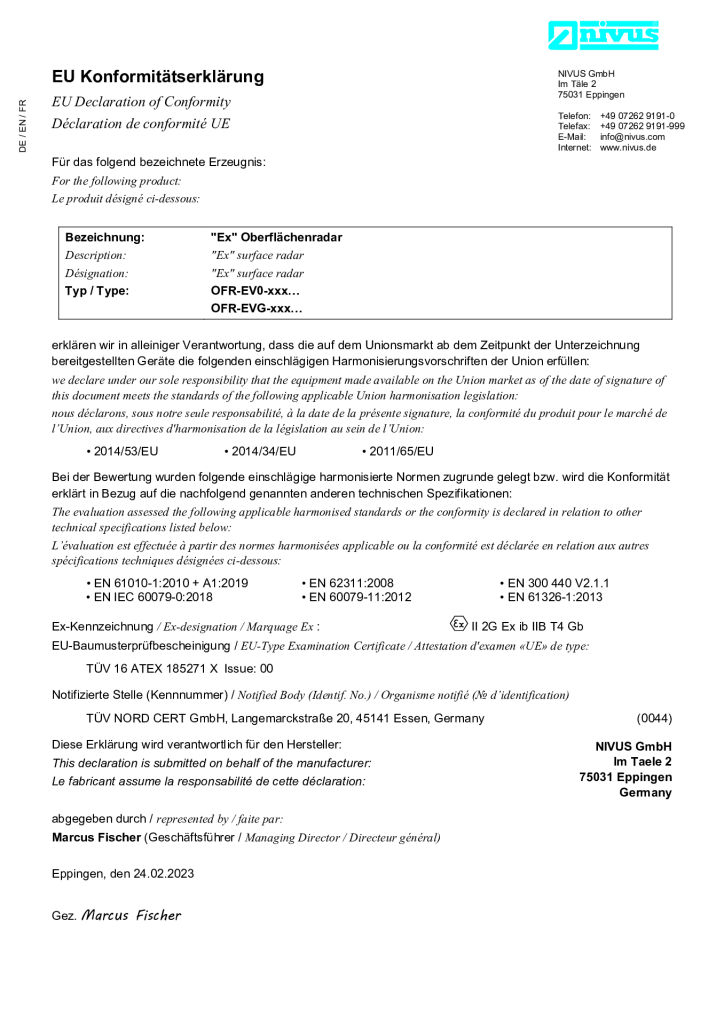

| Ex-Approval |
II 2 G Ex ib IIB T4 Gb; TÜV 16 ATEX 185271X IECEx 16.0034X |
| Measurement principle | Radar Doppler flow velocity detection |
| Measurement range | 0.15 m/s – 15 m/s |
| Temperature range |
-30 °C to +70 °C Ex-Type: -20 °C to +60 °C |
| Frequency response | 24 GHz – ISM band |
| Diagonal distance | 0.3 m – 10 m |
| Protection | IP68 |
| Enclosure material | High-performance composites |
