E119 Explosion proof – Totalizer with receipt printer driver

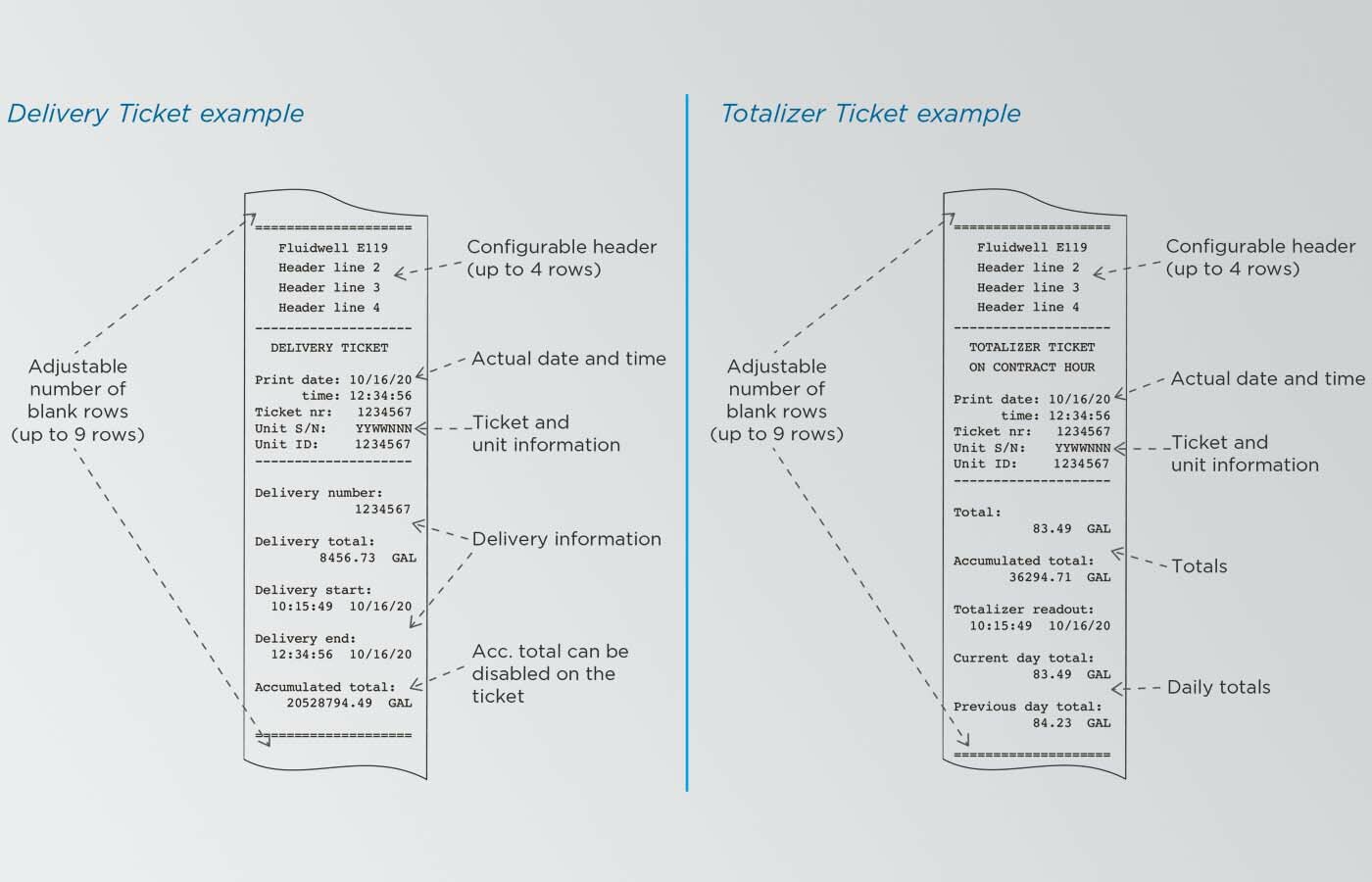

The E119 explosion proof flow rate indicator / totalizer can send a “print receipt” command to a printer. The configurable ticket printing can be set for (daily) totals or delivery tickets. The linearization greatly enhances accuracy in any flow range.
Industries: Animal Feed, Brewing, Chemical, Data Centre, Food, Hydrogen, Manufacturing, Pharma, Utilities, Wastewater, Water
Datasheet
Measure. Monitor. Repeat.
For better insights, better decision-making and better process performance.
Key Features & Benefits
- Explosion proof according ATEX, IECEx and CSA C-US.
- Aluminum or high grade stainless steel Ex d enclosure.
- Easy installation with the spacious chamber and plug & play connectors.
- Cost saving with an easy to install, 1” NPT thread for direct flowmeter mounting.
- 15 point linearization of the flow curve – with interpolation.
- Key information at a glance as the display shows flow rate, total, accumulated total, measuring units and a flow rate indicating speedometer.
- Remote control: external input for clearing total, disable manual clearing, print totalizer ticket, reprint last ticket or end delivery
- Easy K-factor and engineering unit configuration for volumetric or mass. Learn more with this interactive tutorial.
- 7 digit flow rate / total and 11 digit accumulated total.
- Bright LED backlight.
- Current day total (Daily total), previous day total (both non-resettable) and 15 historical day totals can be displayed.
- Easy configurablevia PC with free downloadable remote configuration tool and special communication cable (ACE01/02/06/07).
- Auto backup of settings and running totals.
- Date and time continue in case of power failure.
- Ambient temperature aluminum enclosure: -40°C to +70°C (-40°F to 158°F).
Ambient temperature stainless steel enclosure: -40°C to +67°C (-40°F to 153°F). - Various accessories are available for this product.
- Pulse input retransmission, i.e. for calibration purposes or amplification and squaring of sinewave/coil signals.
Typical Applications
- Flow measurement with mechanical flowmeters where a precise calculation over the full measurement range is required and signal re-transmission is desired.
- When providing a printed ticket as proof of your delivery or daily total is a critical part of your operation.
- The E-Series can be used in rough and tough applications, beyond being just explosion proof. Its sturdy design and ease of use are unequaled by any other explosion proof indicator in the market! The E-Series is always your first and safest choice in explosion proof applications.
Advantages
- Saves time and improves flexibility with the through-glass keypad: no need to open the front cover.
- Familiar easy operation with the Fluidwell "Know one, know them all" configuration structure, saving time, cost and aggravation.
- Durable high-grade stainless steel 316L Ex d enclosure withstanding extreme (maritime) conditions.
| Signal, Power and Communication Specifications | |
|---|---|
| Flowmeter Inputs | Pulse type inputs: Reed-switch, NAMUR, NPN/PNP pulse, Sine wave (coil), active pulse signal |
| Status Inputs | Remote control via external input for clearing total or disabling manual clearing by the keypad |
| Pulse Outputs | Function: Scaled pulse output according to linearized accumulated total and unscaled pulse input retransmission (e.g. a pulse every 3.25 gallons) Max. frequency: 500 Hz Retransmission: Minimum pulse duration 50 µs, adjustable pulse length from 1 ms up to 10 s Type: One passive NPN transistor and one isolated electro-mechanical relay |
| Alarm Outputs | None |
| Analog Outputs | Function: Re-transmission of the linearized flow rate, scalable to any range (e.g. 200 L/min to 1200 L/min) Type: One galvanically isolated, loop-powered 4–20 mA output |
| Power Supply | Long-life lithium battery 4–20 mA output loop-powered 9 – 27 V DC |
| Sensor Supply | 3 / 8.2 / 12 / 24 V DC |
| Hazardous Area | Intrinsically Safe For intrinsically safe applications, F-Series instruments are recommended |
| Explosion Proof Approvals | ATEX: Gas: II 2 G Ex db IIC T6 Gb Dust: II 2 D Ex tb IIIC T85°C DbIECEx: Gas: Ex db IIC T6 Gb Dust: Ex tb IIIC T85°C DbCSA C-US: XP (Explosion-proof): Class I, Division 1, Groups A, B, C, D DIP (Dust-Ignition-proof): Class II, Div. 1, Groups E, F & G T85°C; Class III Gas: Class I, Zone 1, AEx db IIC T6 Gb Dust: Zone 21, AEx tb IIIC T85°C Db |
| Communication | Function: Reading display information, clearing totals, reading/writing configuration settings and data log extraction Type: RS232, RS485 (2-wire) Modbus RTU or local USB Remote configuration via free downloadable configuration tool Optional: HART communication available with E018 Flow Rate Monitor / Totalizer |
Quickstart Guide
Declaration of Conformity
Battery Information Sheet
