N413 DIN Panel mount – Batch Controller
The N410 batch controller distinguishes itself by its user-friendly features: Numerical keypad, clear programming menu structure, easy to read display and simple mounting enclosure. The numerical keypad allows simple and fast changing of the preset batch quantity. Fluidwell stands for simplicity and reliability and it is now available in this customer focused and application driven batch controller.

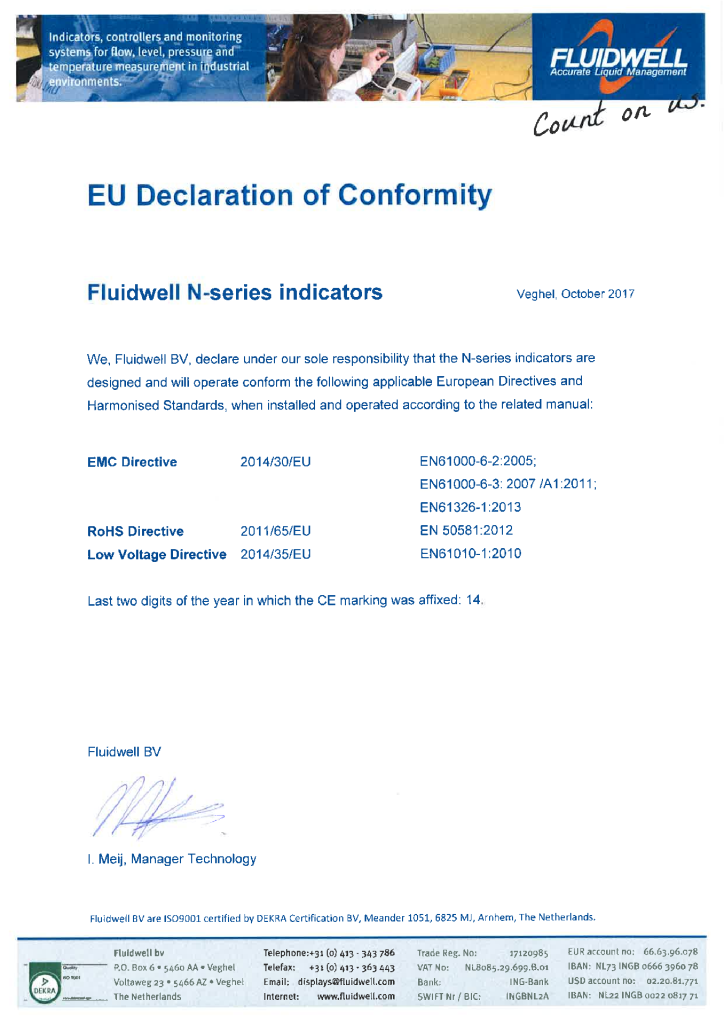

Datasheet
Measure. Monitor. Repeat.
For better insights, better decision-making and better process performance.
Key Features & Benefits
- Full numerical keypad.
- Shows actual value, preset value, batch process indication, relay status indication and measuring units simultaneously.
- Five control inputs for remote START, HOLD, RESUME, keypad lock and external alarm.
- 7 large digits (14mm, 0.56″) for actual value, flow rate and total.
- 10 smaller digits (8mm, 0.3″) for preset value, accumulated total and batch count.
- Selectable on-screen engineering units for volumetric or mass: L, m³, USGAL, IGAL, ft³, bbl, kg, Ton, lb.
- The batch process can be visualized with the tank fill/spill symbol. This graphical representation can be enabled or disabled. When the batch overfills the preset quantity by 2.5% the graph will show two overspill arrows indicating this condition.
- Easy operation to enter a batch value and to control the process.
- Easy configuration with clear alphanumerical display.
- No-flow monitoring.
- Automatic overrun correction.
- Bright LED backlight.
- Auto backup of settings and running totals in EEPROM memory.
- Ambient temperature: -20°C to +60°C (-4°F to 140°F).
- Aluminum IP67 (NEMA Type4X) DIN front panel of 144 x 72mm (5.67” x 2.83”).
- A just-in-time back-up stores the latest batch information in case of a power failure.

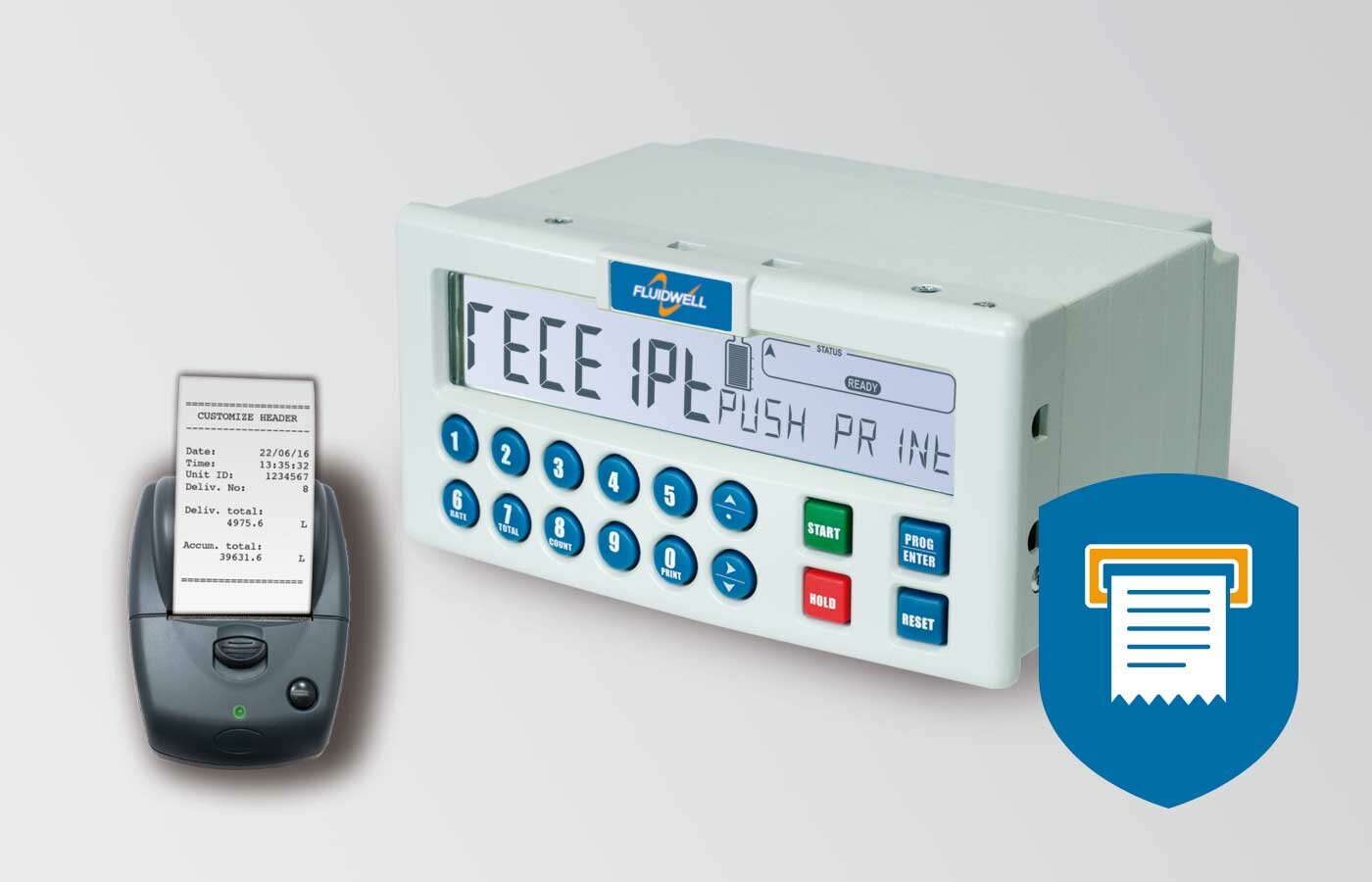

- Various handheld and panel printers and other accessories are available for this product.
Typical Applications
- Accurate batching or filling of liquids where the batch size changes frequently and easy ticket printing on location is required.
- The N-Series offers the perfect solution for batch control applications where a user-friendly instrument is required. Whether you focus on its clear display information, the very easy to operate numerical keypad or the easy menu-driven configuration structure, you’ve got to have a Fluidwell.
- Automated IBC filling applications.
Advantages
- Save time and cost with the easy to operate numerical keypad.
- Familiar easy operation with the Fluidwell "Know one, know them all" configuration structure, saving time, cost and aggravation.
- Key information at a glance as the display simultaneously shows actual value, preset value, batch process indication, switch point indication and measuring units.
- Easy installation with the rugged aluminum DIN-size panel mount enclosure.
| Technical Data | |
|---|---|
| Signal Inputs – Flowmeter Inputs | Pulse type inputs: Reed-switch, open collector, NAMUR, NPN/PNP pulse, sine wave (coil), active pulse signal |
| Status Inputs | Remote control: start / hold / resume / keypad lock / external alarm |
| Signal Outputs – Pulse Outputs | Function: Scaled pulse output according to accumulated or batched total Type: One configurable, field-replaceable heavy-duty mechanical relay (NO/NC) and three configurable transistor outputs |
| Signal Outputs – Alarm Outputs | Function: Activated in case of no-flow, external or system alarm Type: One configurable, field-replaceable heavy-duty mechanical relay (NO/NC) and three configurable transistor outputs |
| Signal Outputs – Analog Outputs | None |
| Control Outputs | Function: Relay 1 fixed as the main batch control relay. Relay 2 and transistor outputs configurable as 1- or 2-stage batch control Type: Two field-replaceable heavy-duty mechanical relay outputs (NO/NC) and three configurable transistor outputs |
| Power Supply | 24 V DC 110 – 230 V AC |
| Sensor Supply | 8.2 / 12 / 24 V DC |
| Hazardous Area Classification | Safe areas only (For intrinsically safe applications, F-Series batch controllers are recommended) |
| Communication | Function: Automatic “Print receipt” command after every batch Protocol: ASCII data Interface: RS232 or RS485 (2-wire) |
