F012 Safe area / Intrinsically safe – Flow rate Indicator / Totalizer

Name: F012 Safe area / Intrinsically safe - Flow rate Indicator / Totalizer
Brand: FLUIDWELL
Availability: InStock

The F012 is our most popular model. This local flow rate indicator / totalizer displays the actual flow rate, total and accumulated total. Total can be reset to zero by pressing the CLEAR button twice. The accumulated total can register up to 11 digits and is backed-up in EEPROM memory every minute, just as the running total.

Enquire Now

Measures: Flow, Level, Pressure, Temperature, Transmitters

Industries: Animal Feed, Brewing, Chemical, Data Centre, Food, Hydrogen, Manufacturing, Pharma, Utilities, Wastewater, Water

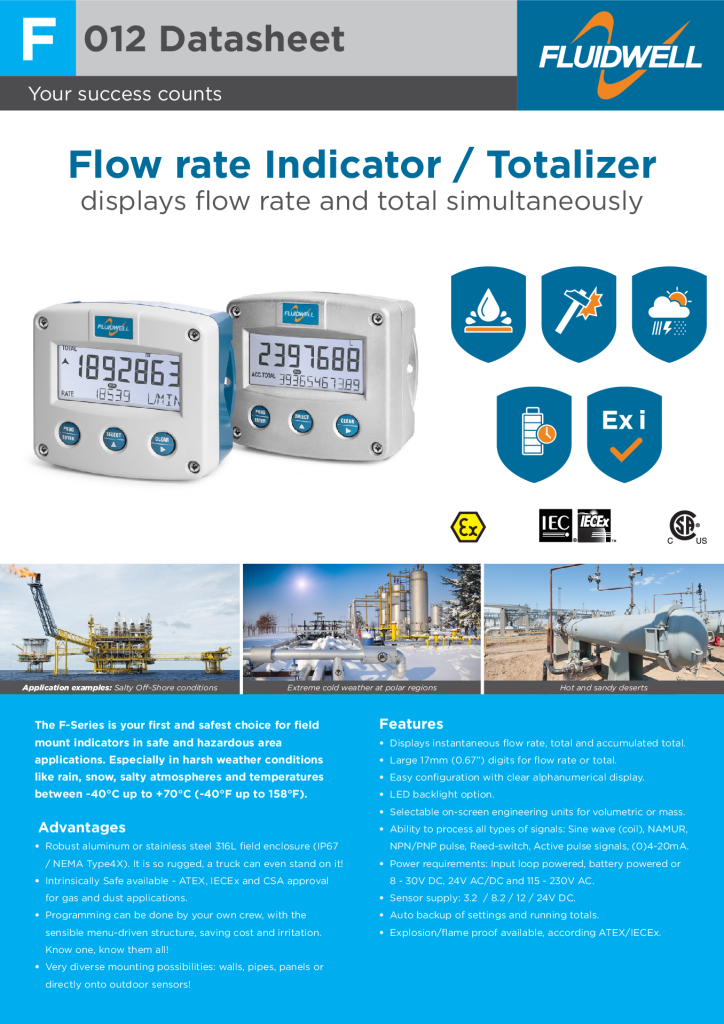

Datasheet

Measure. Monitor. Repeat.

For better insights, better decision-making and better process performance.

Key Features & Benefits

Displays total and flow rate simultaneously and additional accumulated total.
Large digit selection for flow rate or total.
Flow rate: seven 17mm (0.67″) or 8mm (0.31″) digits.
Total – resettable: seven 17mm (0.67″) digits.
Accumulated total – not resettable: eleven 8mm (0.31″) digits.
Separate engineering units for flow rate and total.
Selectable on-screen engineering units for flow rate: mL, L, m³, mg, g, kg, ton, GAL, bbl, lb, cf, REV, scf, Nm³, NL, P or no unit. Time units for flow rate: /sec, /min, /hour or /day.
Selectable on-screen engineering units for total: ml, L, m³, GAL, USGAL, kg, lb, bbl or no unit.
LED backlight with adjustable intensity.
Intrinsically safe according ATEX, IECEx and CSA C-US.
GRP, Aluminum or high grade stainless steel enclosure.
Auto backup of settings and running totals in EEPROM memory.
Easy configuration with clear alphanumerical display.
Ambient temperature: -40°C to +70°C (-40°F to 158°F).
Various accessories are available for this product.

Typical Applications

Flow measurement where a local flow rate indication and totalizer function is required without signal re-transmission.
The F-Series is your first and best choice for field mount indicators in safe and hazardous area applications. Especially in harsh weather conditions like rain, snow, sandy deserts, salty atmospheres and temperatures between -40°C up to +70°C (-40°F up to 158°F).

Product Description
Technical Data
Videos & Downloads

Advantages

Robust aluminum or stainless steel 316L field enclosure (IP65, IP67 / NEMA Type4X) .
It is so rugged, a truck can even stand on it!
Intrinsically Safe available - ATEX, IECEx and CSA approval for gas and dust applications.
Familiar easy operation with the Fluidwell "Know one, know them all" configuration structure, saving time, cost and aggravation.
Very diverse mounting possibilities: walls, pipes, panels or directly onto outdoor sensors.

Signal, Power and Communication Specifications
Signal Inputs	Flowmeter Inputs: Pulse type inputs: Reed-switch, NAMUR, NPN/PNP pulse, sine wave (coil), active pulse signal (0)4 – 20 mA
Pulse Outputs	None
Alarm Outputs	None
Analog Outputs	None
Power Supply	Long life Lithium battery 4 – 20 mA input loop-powered 8 – 24 V AC/DC 115 – 230 V AC Basic version: 8 – 30 V DC
Sensor Supply	3.2, 8.2, 12, 24 V DC
Intrinsically Safe Approvals	ATEX: Gas: II 1 G Ex ia IIC T4 Ga Dust: II 1 D Ex ia IIIC T200 / 100°C DaIECEx: Gas: Ex ia IIC T4 Ga Dust: Ex ia IIIC T200 / 100°C Da CSA: I.S. Class I/II/III, Div 1, Grp A…G, T4 Class I, Zone 0, AEx ia IIC T4 Ga Note: Extended aluminum enclosures not available with CSA/FM approval.
Explosion Proof Approvals	ATEX / IECEx: Gas: II 2 G Ex db IIB + H2 T5 Gb Dust: II 2 D Ex tb IIIC T80°C Db
Communication	Modbus communication available on F1-Series products HART communication available with the F018 Flow Rate Monitor / Totalizer
