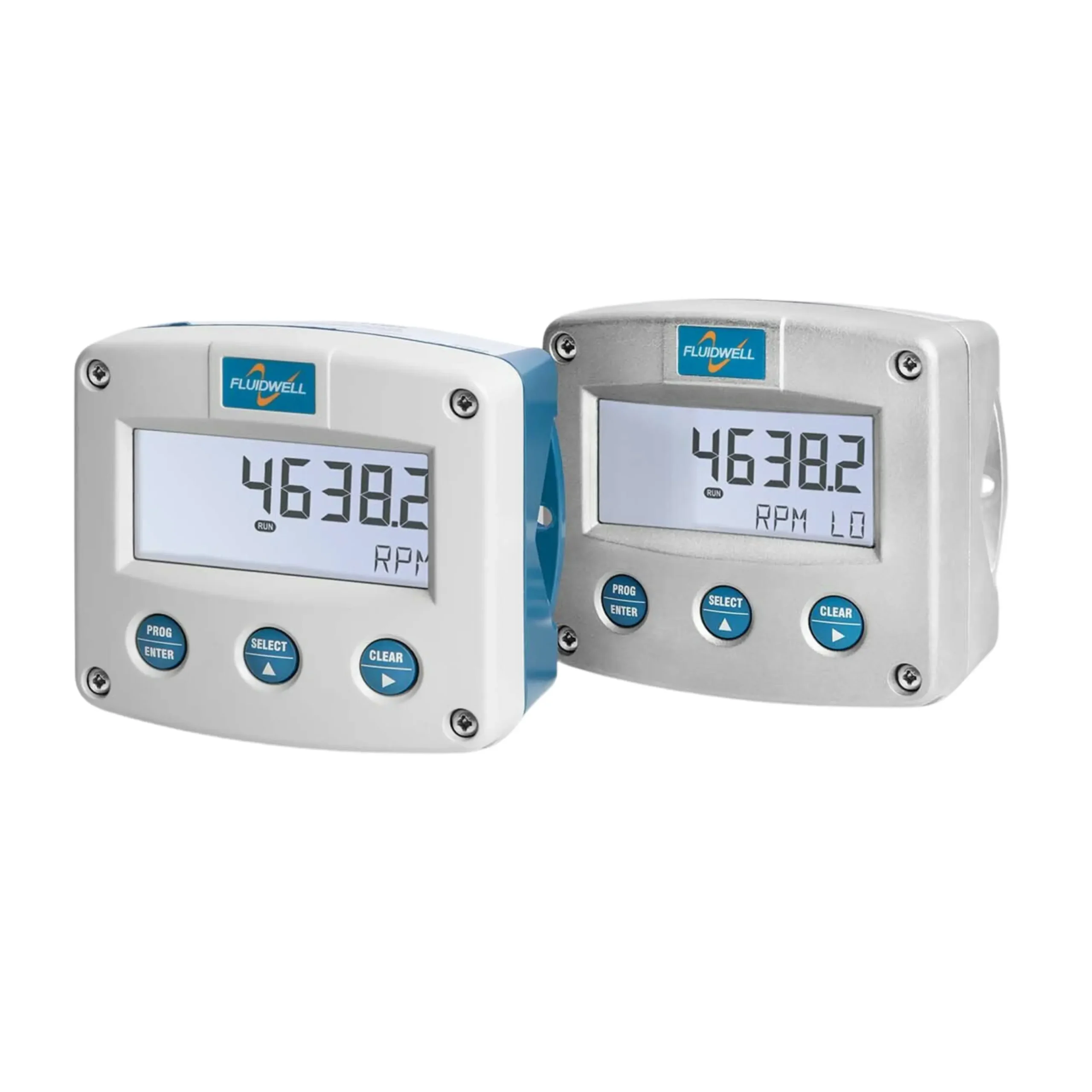

F093 Safe area / Intrinsically safe – Tachometer Monitor
The F093 is a local multi-purpose indicator to monitor the tachometer engine speed with running hours simultaneously. The running hours can be reset to zero by pressing the CLEAR button twice. The eleven digit accumulated running hours however can not be reset to zero.

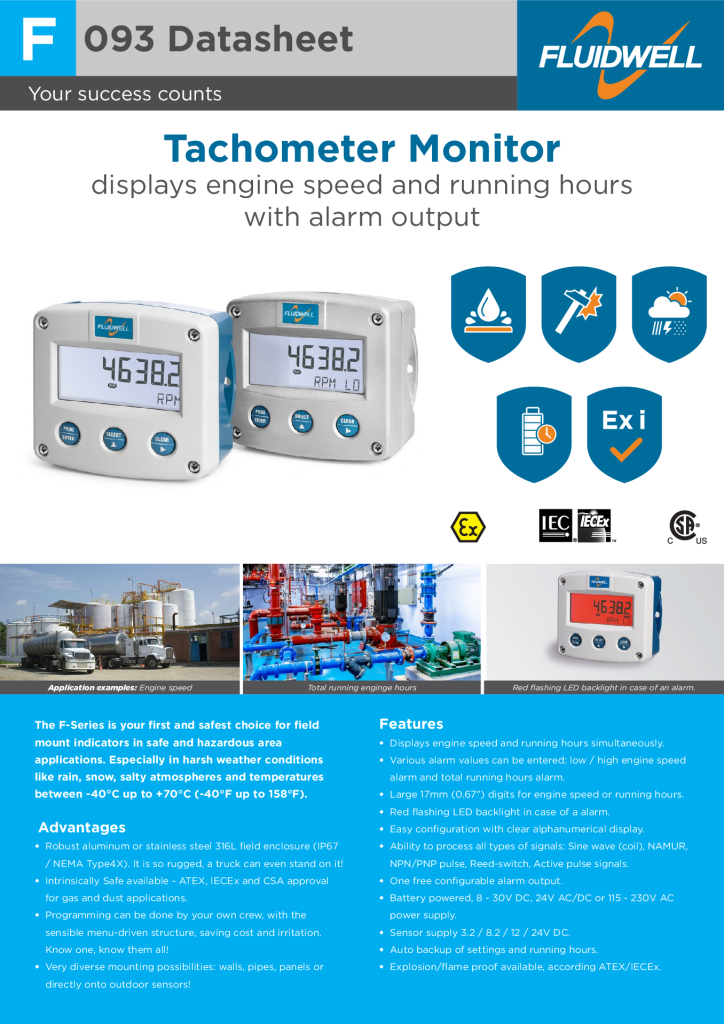

Datasheet
Measure. Monitor. Repeat.
For better insights, better decision-making and better process performance.
Key Features & Benefits
- Displays engine speed and running hours simultaneously and additional accumulated running hours, alarm values and alarm messages.
- On-screen engineering units: HOURS and RPM.
- Displays clear alarm messages.
- Red flashing LED backlight in case of an alarm; intensity adjustable.
- Large 17mm (0.67″) digits for engine speed or running hours.
- Various alarm values can be entered: low / high engine speed alarm and total running hours alarm.
- Intrinsically safe according ATEX, IECEx and CSA C-US.
- GRP, Aluminum or high grade stainless steel enclosure.
- Auto backup of settings in EEPROM memory.
- Easy configuration with clear alphanumerical display.
- Ambient temperature: -40°C to +70°C (-40°F to 158°F).
Typical Applications
- Tachometer applications where monitoring of the engine speed and running hours is important and both need to be displayed and registered.
- The F-Series is your first and best choice for field mount indicators in safe and hazardous area applications. Especially in harsh weather conditions like rain, snow, sandy deserts, salty atmospheres and temperatures between -40°C up to +70°C (-40°F up to 158°F).
Advantages
- Robust aluminum or stainless steel 316L field enclosure (IP65, IP67 / NEMA Type4X) .
It is so rugged, a truck can even stand on it! - Intrinsically Safe available - ATEX, IECEx and CSA approval for gas and dust applications.
- Familiar easy operation with the Fluidwell "Know one, know them all" configuration structure, saving time, cost and aggravation.
- Very diverse mounting possibilities: walls, pipes, panels or directly onto outdoor sensors.
| Category | Specification |
|---|---|
| Signal Inputs | |
| Multi-Purpose Inputs |
Pulse inputs from tachometers: Reed-switch, NAMUR, NPN/PNP pulse, Sine wave (coil), active pulse signal |
| Signal Outputs | |
| Alarm Outputs |
Function: Configurable alarm output to transmit the engine speed alarm or total running hours alarm Type: One passive NPN transistor, active PNP transistor, or isolated electro-mechanical relay |
| Analog Outputs | None |
| Power Supply | |
| Supply Options |
Long-life lithium battery 8–24 V AC/DC 115–230 V AC Basic: 8–30 V DC |
| Sensor Supply | 8.2 V, 12 V, 24 V DC |
| Hazardous Area | |
| Intrinsically Safe |
ATEX: Gas: II 1 G Ex ia IIC T4 Ga Dust: II 1 D Ex ia IIIC T200 100°C Da IECEx: CSA: |
| Explosion Proof |
ATEX / IECEx: Gas: II 2 G Ex db IIB+H2 T5 Gb Dust: II 2 D Ex tb IIIC T80°C Db |
| Communication | |
| Details |
Modbus communication available on F1-Series products. HART communication available with the F018 Flow Rate Monitor / Totalizer |
