F112 Safe area / Intrinsically safe – Flow rate Indicator / Totalizer
The F112 is a versatile flow rate indicator / totalizer with the ability to precisely linearize the flowmeter signal. In addition to the average K-Factor or Span, fifteen linearization points can be entered with their frequencies or values.

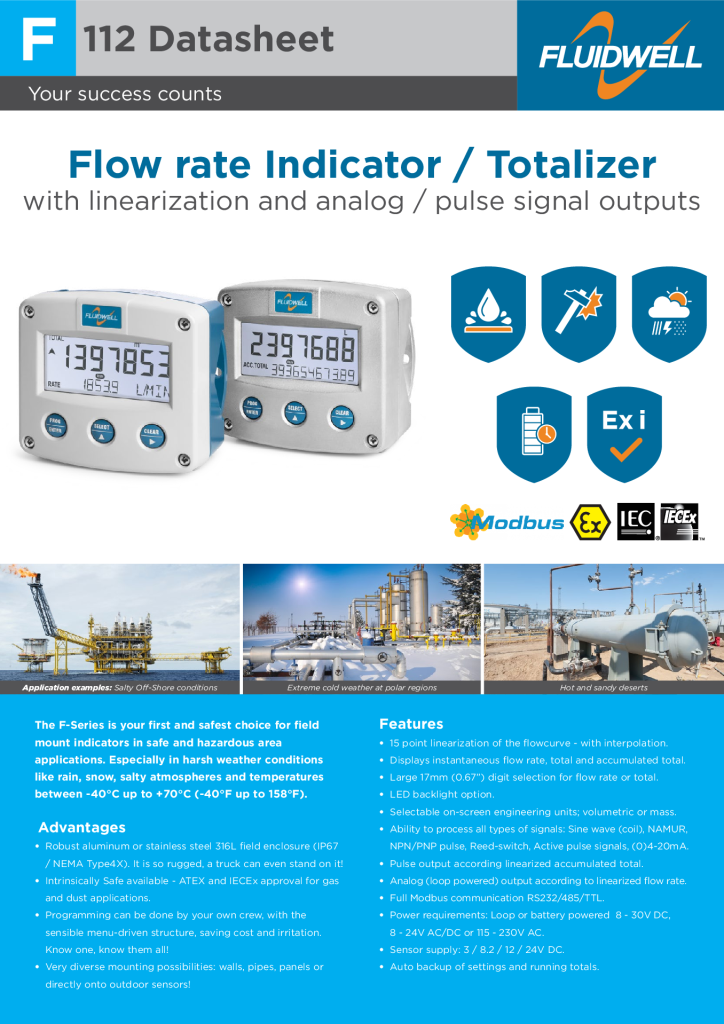

Datasheet
Measure. Monitor. Repeat.
For better insights, better decision-making and better process performance.
Key Features & Benefits
- Fifteen point linearization of the flow curve – with interpolation.
- Analog and pulse outputs.
- Displays linearized total and flow rate simultaneously and additional accumulated total.
- Large digit selection for flow rate or total.
- Flow rate: seven 17mm (0.67″) or 8mm (0.31″) digits.
- Total – resettable: seven 17mm (0.67″) digits.
- Accumulated total – not resettable: eleven 8mm (0.31″) digits.
- Separate engineering units for flow rate and total on the display.
- Remote control input to reset total or to lock the “clear total” button.
- LED backlight.
- Intrinsically safe according ATEX and IECEx.
- GRP, Aluminum or high grade stainless steel enclosure.
- Auto backup of settings and running totals in EEPROM memory.
- Ambient temperature: -40°C to +70°C (-40°F to 158°F).
- Various accessories are available for this product.
Typical Applications
- Liquid flow measurement with mechanic flowmeters where a precise calculation over the full measurement range is required. Also re-transmission of the flow rate and/or totalizer functions or serial communication is desired.
- The F-Series is your first and best choice for field mount indicators in safe and hazardous area applications. Especially in harsh weather conditions like rain, snow, sandy deserts, salty atmospheres and temperatures between -40°C up to +70°C (-40°F up to 158°F).
Advantages
- Robust aluminum or stainless steel 316L field enclosure (IP65, IP67 / NEMA Type4X) .
It is so rugged, a truck can even stand on it! - Intrinsically Safe available - ATEX and IECEx approval for gas and dust applications.
- Familiar easy operation with the Fluidwell "Know one, know them all" configuration structure, saving time, cost and aggravation.
- Very diverse mounting possibilities: walls, pipes, panels or directly onto outdoor sensors.
| Flowmeter Specifications | |
|---|---|
| Flowmeter Inputs | Pulse type inputs: Reed-switch, open collector, NAMUR, NPN/PNP pulse, Sine wave (coil), active pulse signal Analog Inputs: (0)4 – 20 mA Status Inputs: Remote control: external reset for clearing total or to disable manual clearing by the keypad |
| Pulse Outputs | Function: Scaled pulse output according to linearized accumulated total (e.g., a pulse every 3.25 gallons) Max. Frequency: 500 Hz Adjustable Pulse Length: 0.001 sec – 9.999 sec Type: One passive NPN transistor, active PNP transistor, or isolated electro-mechanical relay |
| Alarm Outputs | None |
| Analog Outputs | Function: Re-transmitting the linearized flow rate (scalable, e.g., 200 L/min to 1200 L/min) Type: One passive isolated, floating or loop-powered 4 – 20 mA output, or one active (0)4 – 20 mA or 0 – 10 V DC output |
| Power Supply | Long life Lithium battery 4 – 20 mA loop-powered 8 – 24 V AC/DC 115 – 230 V AC Basic: 8 – 30 V DC |
| Sensor Supply | 3.2, 8.2, 12, 24 V DC |
| Hazardous Area Approvals | Intrinsically Safe: ATEX: Gas: II 1 G Ex ia IIB/IIC T4 Ga ATEX: Dust: II 1 D Ex ia IIIC T200 100 °C Da IECEx: Gas: Ex ia IIC/IIB T4 Ga IECEx: Dust: Ex ia IIIC T200 100 °C Da Explosion Proof: |
| Communication | Function: Reading and writing all process data and settings Protocol: Modbus RTU Interface: RS232 / RS485 2-wire or 4-wire / TTL HART communication available with F018 Flow rate Monitor / Totalizer |
