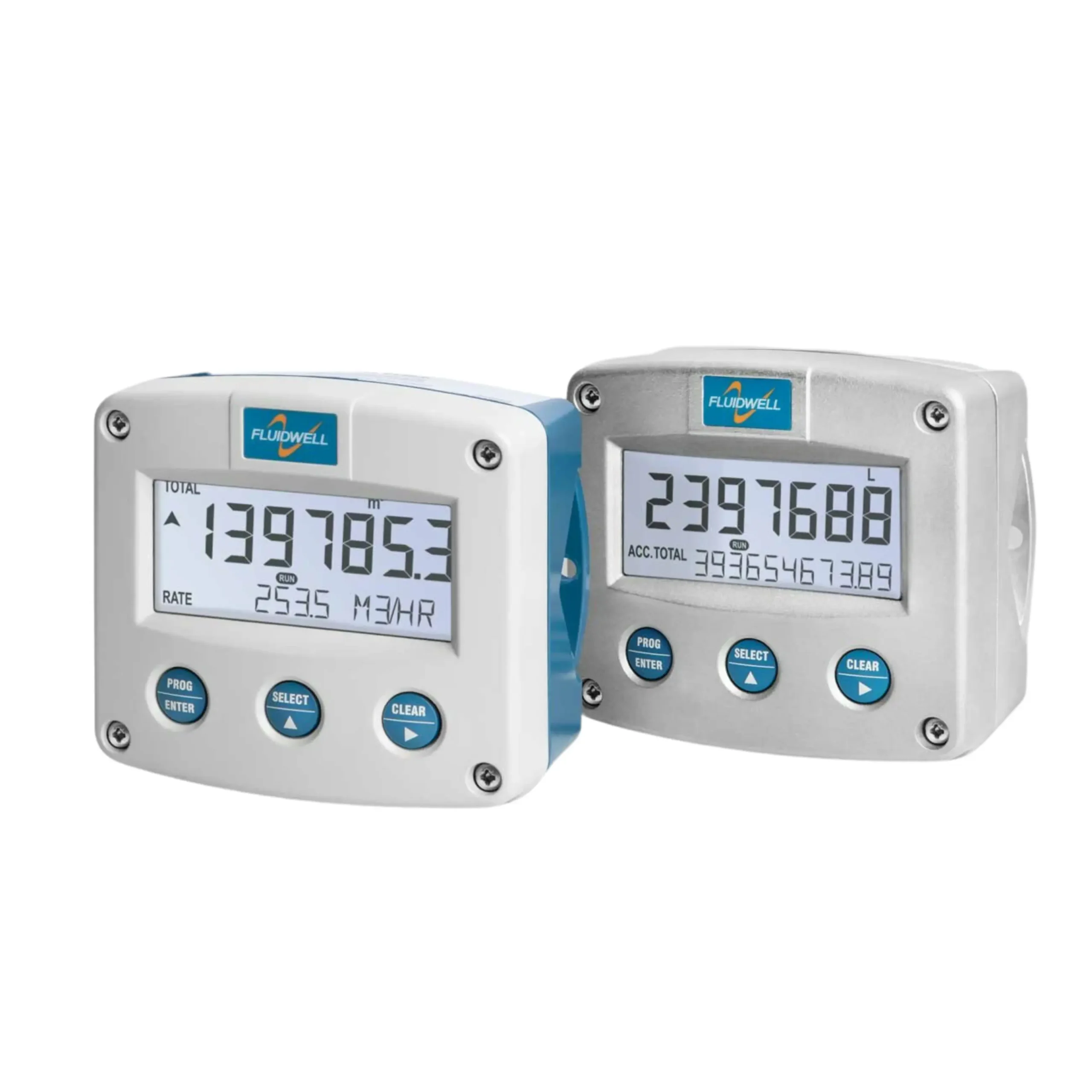

F126-EG Safe area / Intrinsically safe - Flow Computer for gas

F126-EG Safe area / Intrinsically safe - Flow Computer for gas - Image 2

F126-EG Safe area / Intrinsically safe – Flow Computer for gas

Name: F126-EG Safe area / Intrinsically safe - Flow Computer for gas
Brand: FLUIDWELL
Availability: InStock

The F126-EG flow computer has been developed to calculate corrected gas volume at normal conditions. The corrected volumetric flow is calculated by measuring the uncorrected volumetric flow, actual line temperature and pressure which are processed with the equations stored in the flow computer. A compressibility factor can be set to approach a real gas behavior. The reference conditions can be defined as desired (e.g. 15°C or 60°F and 1.013 bar).

Enquire Now

Measures: Flow, Level, Pressure, Temperature, Transmitters

Industries: Animal Feed, Brewing, Chemical, Data Centre, Food, Hydrogen, Manufacturing, Pharma, Utilities, Wastewater, Water

Datasheet

Measure. Monitor. Repeat.

For better insights, better decision-making and better process performance.

Key Features & Benefits

Calculates compensated flow rate, total and accumulated total.
Displays actual line pressure and temperature.
Analog output signal reflecting the corrected flow rate.
Displays total and flow rate simultaneously and additional accumulated total.
Flow rate: seven 8mm (0.31″) digits.
Total – resettable: seven 17mm (0.67″) digits.
Accumulated total – not resettable: eleven 8mm (0.31″) digits.
Temperature: six 17mm (0.67″) digits.
Pressure: six 17mm (0.67″) digits.
Engineering units for flow rate, total, temperature and pressure on the display.
LED backlight.
Intrinsically safe according ATEX and IECEx.
GRP, Aluminum or high grade stainless steel enclosure.

Typical Applications

Flow measurement in applications where nett gas flow calculation at base conditions is desired without the influence of thermal product expansion and pressure.
The F-Series is your first and best choice for field mount indicators in safe and hazardous area applications. Especially in harsh weather conditions like rain, snow, sandy deserts, salty atmospheres and temperatures between -40°C up to +70°C (-40°F up to 158°F).

Product Description
Technical Data
Videos & Downloads

Advantages

Robust aluminum or stainless steel 316L field enclosure (IP65, IP67 / NEMA Type4X) .
It is so rugged, a truck can even stand on it!
Intrinsically Safe available - ATEX and IECEx approval for gas and dust applications.
Familiar easy operation with the Fluidwell "Know one, know them all" configuration structure, saving time, cost and aggravation.
Very diverse mounting possibilities: walls, pipes, panels or directly onto outdoor sensors.

Category	Function / Description	Type / Details
Signal Inputs	Flowmeter Inputs	Pulse type inputs: Reed-switch, open collector, NAMUR, NPN/PNP pulse, Sine wave (coil), active pulse signal.
	Temperature Inputs	PT100 – 2-wire or 3-wire PRTD sensor
	Pressure Inputs	(0)4–20mA
Signal Outputs	Pulse Outputs	Scaled pulse output according to accumulated total (e.g. a pulse every 3.25 gallons). Max. frequency: 500Hz. Adjustable pulse length: 0.001 sec to 9.999 sec. Type: One passive NPN transistor, active PNP transistor, or isolated electro-mechanical relay.
	Alarm Outputs	None
	Analog Outputs	Re-transmitting the compensated flow rate, scalable to any range (e.g. 200 L/min to 1200 L/min). One passive isolated, floating or loop-powered 4–20mA output, or one active (0)4–20mA / 0–10V DC output.
Supply	Power Supply	Long life Lithium battery. 4–20mA loop-powered. 8–24V AC/DC. 115–230V AC. Basic: 8–30V DC
	Sensor Supply	3.2V, 8.2V, 12V, 24V DC
	Hazardous Area – Intrinsically Safe	ATEX: Gas: II 1 G Ex ia IIB/IIC T4 Ga Dust: II 1 D Ex ia IIIC T200 100 °C Da IECEx: Gas: Ex ia IIC/IIB T4 Ga Dust: Ex ia IIIC T200 100 °C Da
	Explosion Proof	ATEX/IECEx: Gas: II 2 G Ex db IIB+H2 T5 Gb Dust: II 2 D Ex tb IIIC T80°C Db
Communication	All process data and settings can be read and modified through the communication link. Protocol: Modbus RTU. Interface: RS232 / RS485 2-wire or 4-wire / TTL. HART communication is available with the F018 Flow rate Monitor / Totalizer.
