F014 Safe area / Intrinsically safe – Flow rate Indicator / Totalizer
The F014 is a local flow rate indicator / totalizer which displays the actual flow rate, total and accumulated total. A scaled pulse, related to the accumulated total is generated for re-transmitting the count on the display.

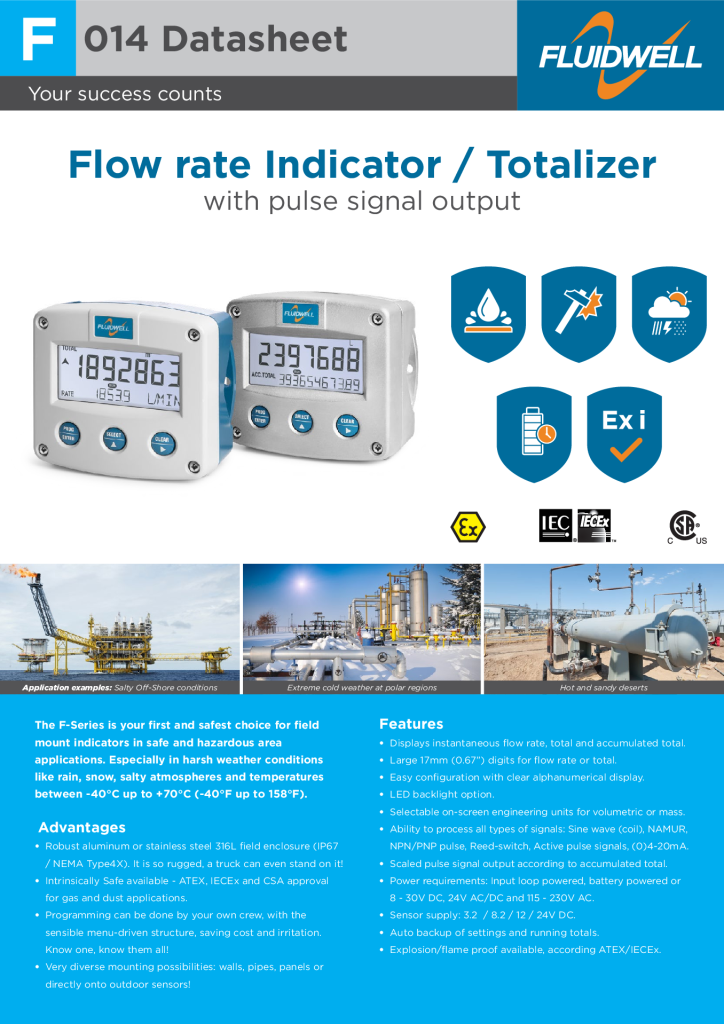

Datasheet
Measure. Monitor. Repeat.
For better insights, better decision-making and better process performance.
Key Features & Benefits
- Displays total and flow rate simultaneously and additional accumulated total.
- Large digit selection for flow rate or total.
- Selectable on-screen engineering units for flow rate: mL, L, m³, mg, g, kg, ton, GAL, bbl, lb, cf, REV, scf, Nm³, NL, P or no unit. Time units for flow rate: /sec, /min, /hour or /day.
- Selectable on-screen engineering units for total: ml, L, m³, GAL, USGAL, kg, lb, bbl or no unit.
- Scaled pulse output reflecting the accumulated total.
- Flow rate: seven 17mm (0.67″) or 8mm (0.31″) digits.
- Total – resettable: seven 17mm (0.67″) digits.
- Accumulated total – not resettable: eleven 8mm (0.31″) digits.
- Separate engineering units for flow rate and total.
- LED backlight with adjustable intensity.
- Intrinsically safe according ATEX, IECEx and CSA C-US.
- GRP, Aluminum or high grade stainless steel enclosure.
- Auto backup of settings and running totals in EEPROM memory.
- Easy configuration with clear alphanumerical display.
- Ambient temperature: -40°C to +70°C (-40°F to 158°F).
- Various accessories are available for this product.
Typical Applications
- Flow measurement where re-transmission of the totalizer function is required.
- The F-Series is your first and best choice for field mount indicators in safe and hazardous area applications. Especially in harsh weather conditions like rain, snow, sandy deserts, salty atmospheres and temperatures between -40°C up to +70°C (-40°F up to 158°F).
Advantages
- Robust aluminum or stainless steel 316L field enclosure (IP65, IP67 / NEMA Type4X) .
It is so rugged, a truck can even stand on it! - Intrinsically Safe available - ATEX, IECEx and CSA approval for gas and dust applications.
- Familiar easy operation with the Fluidwell "Know one, know them all" configuration structure, saving time, cost and aggravation.
- Very diverse mounting possibilities: walls, pipes, panels or directly onto outdoor sensors.
| Flowmeter Signal, Power & Communication Specifications | |
|---|---|
| Signal Inputs |
Flowmeter Inputs: Pulse type inputs: Reed-switch, NAMUR, NPN/PNP pulse, Sine wave (coil), active pulse signal (0)4 – 20 mA |
| Pulse Outputs |
Function: Scaled pulse output according to accumulated total (e.g. one pulse every 3.25 gallons) Max. frequency: 500 Hz Adjustable pulse length: 1 msec to 10 seconds Type: Passive NPN transistor, active PNP transistor, or isolated electro-mechanical relay |
| Alarm Outputs | None |
| Analog Outputs | None |
| Power Supply |
Long life Lithium battery 4 – 20 mA loop-powered 8 – 24 V AC/DC 115 – 230 V AC Basic: 8 – 30 V DC |
| Sensor Supply | 3.2, 8.2, 12, 24 V DC |
| Intrinsically Safe Approvals |
ATEX: Gas: II 1 G Ex ia IIC T4 Ga Dust: II 1 D Ex ia IIIC T200 / 100°C Da IECEx: CSA: |
| Explosion Proof Approvals |
ATEX / IECEx: Gas: II 2 G Ex db IIB+H2 T5 Gb Dust: II 2 D Ex tb IIIC T80°C Db |
| Communication |
Modbus communication available on F1-Series products HART communication available with F018 Flow Rate Monitor / Totalizer |
