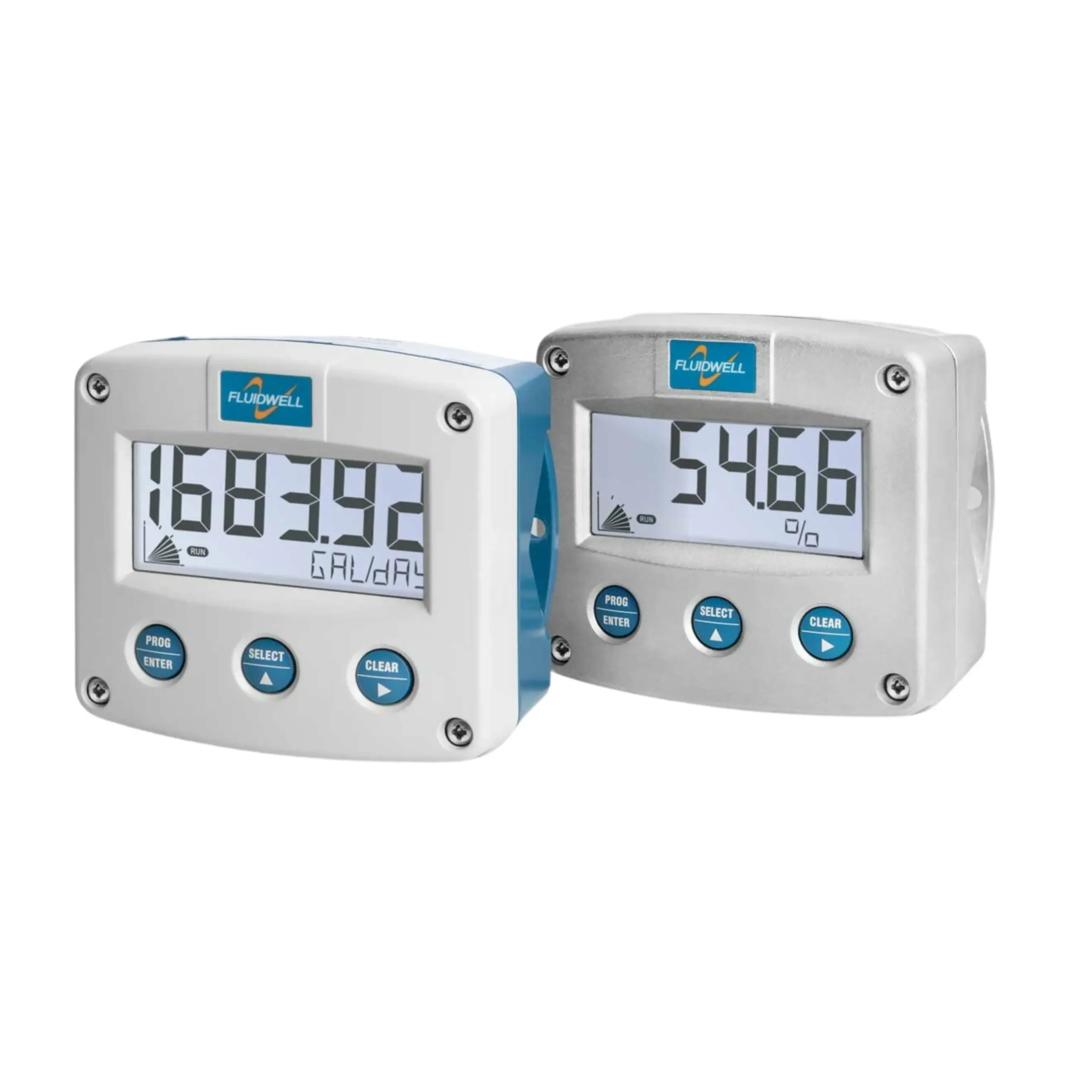

F490 Safe area / Intrinsically safe – Loop Powered, Multi-Purpose Indicator
The F490 is a versatile, loop powered, multi-purpose indicator to display the actual process value, range and loop current.
Datasheet
Measure. Monitor. Repeat.
For better insights, better decision-making and better process performance.
Key Features & Benefits
- Universal loop powered indicator.
- Input signal: 4 – 20mA with ultra low voltage drop < 1V DC, allowing easy installation in almost any 2-wire, 4–20mA loop.
- Displays the actual value, measuring unit and loop current.
- Very large 26mm (1″) high digits.
- Number of digits for actual value: 5½.
- Piegraph indication: ten segments.
- LED backlight with separated circuit from the input circuit.
- Intrinsically safe according ATEX, IECEx and CSA C-US.
- GRP, Aluminum or high grade stainless steel enclosure.
- Auto backup of settings in EEPROM memory.
- Easy configuration with clear alphanumerical display.
- Ambient temperature: -30°C to +70°C (-22°F to +158°F).
Typical Applications
- Applications where a local, loop powered, general / multi-purpose display is required without monitoring function, linearization or signal re-transmitting.
- The F490 takes operating energy from an input current (2-wire 4 – 20mA) and has a separated backlight circuit.
- The F-Series is your first and best choice for field mount indicators in safe and hazardous area applications. Especially in harsh weather conditions like rain, snow, sandy deserts, salty atmospheres and temperatures between -30°C to +70°C (-22°F to +158°F).
Besides the focus on level, temperature and pressure applications, the F490 can also work with other measuring units, like %, mA, RPM and more. The measuring unit to be displayed is simply selected through an alfa-numerical configuration menu. The configuration of Span, offset and number of decimals is done through software functions, without any sensitive dip-switches or trimmers. Therefore, the F490 is a versatile indicator that suits many applications. Various options are available, including Intrinsic Safety for hazardous area applications.
The input circuit is separated from the backlight circuit. The F490 analog input indicator accepts 4 - 20mA input signals from a wide range of process instruments, including flow (linear or square root), level, pressure and temperature transmitters. All these process parameters can be displayed in their own engineering units.
Advantages
- Robust aluminum or stainless steel 316L field enclosure (IP65, IP67 / NEMA Type4X) .
It is so rugged, a truck can even stand on it! - Intrinsically Safe available - ATEX, IECEx and CSA approval for gas and dust applications.
- Familiar easy operation with the Fluidwell "Know one, know them all" configuration structure, saving time, cost and aggravation.
- Very diverse mounting possibilities: walls, pipes, panels or directly onto outdoor sensors.
| Category | Specification |
|---|---|
| Signal Inputs | |
| Multi-Purpose Inputs | 4–20 mA input, loop-powered with ultra low voltage drop < 1V DC |
| Signal Outputs | |
| Alarm Outputs | None |
| Analog Outputs | None |
| Power Supply | |
| Supply Options | 4–20 mA input, loop-powered with ultra low voltage drop < 1V DC |
| Sensor Supply | None |
| Hazardous Area | |
| Intrinsically Safe | ATEX: Gas: II 1 G Ex ia IIC T4 Ga Dust: II 1 D Ex ia IIIC T200 100°C Da Mining: I M1 Ex ia I Ma IECEx: CSA: |
| Communication | |
| Details | Modbus communication available on F1-Series products. HART communication available with the F018 Flow Rate Monitor / Totalizer |
