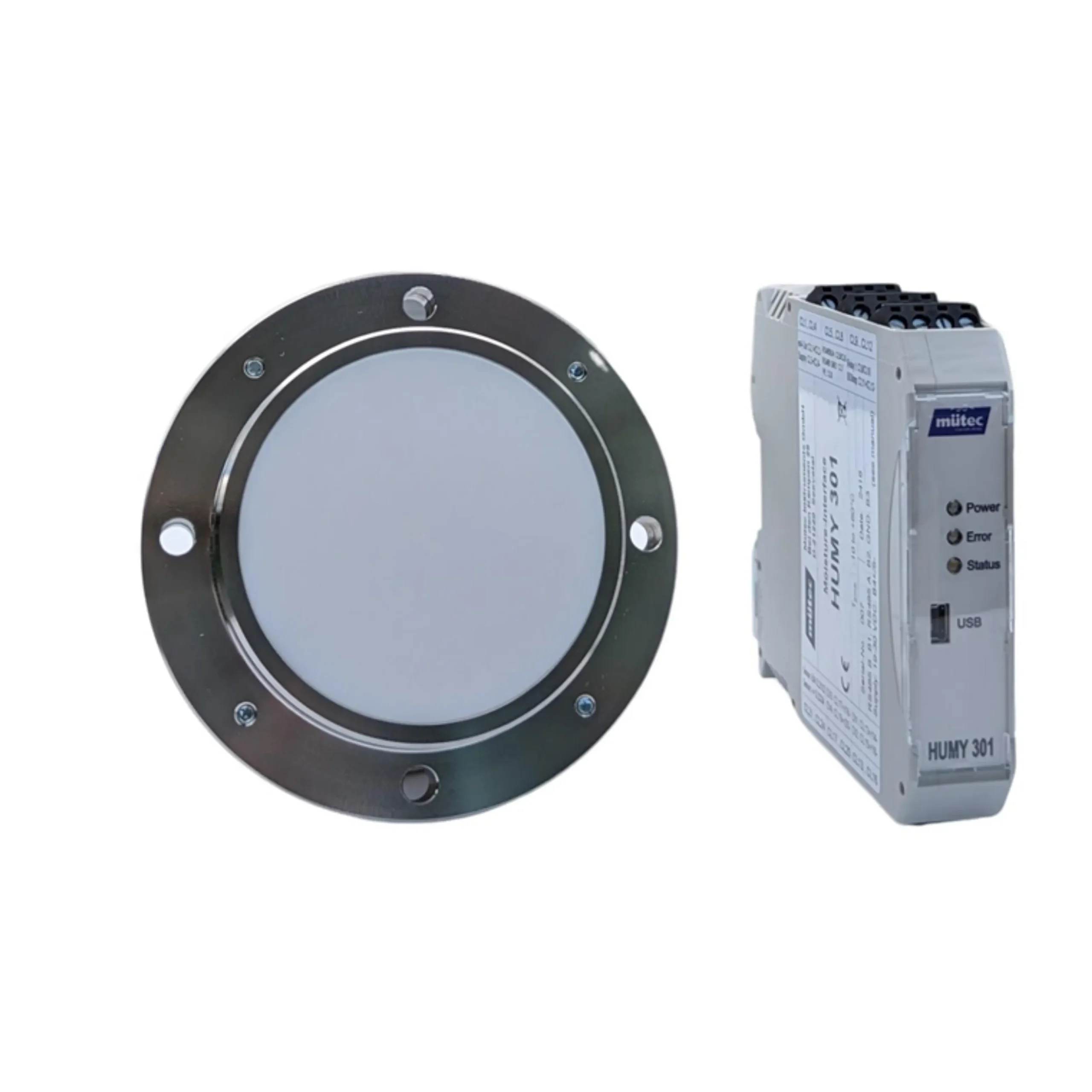

HUMY 301

Name: HUMY 301
Brand: MUTEC
Availability: InStock

The HUMY 301 uses a capacitive measuring method that determines the entire water content of a material – and not just its surface. To do this, the sensor’s field lines penetrate up to 200 mm deep into the material. The measurement result has an accuracy of up to 0.1 % – depending on the bulk material and measurement situation.

Enquire Now

Measures: Dust, Flow, Level, Moisture, Solids

Industries: Animal Feed, Manufacturing, Pharma, Wood

Brochure

Measure. Monitor. Repeat.

For better insights, better decision-making and better process performance.

Key Features & Benefits

Real-time monitoring of product moisture
No laboratory samples necessary
The maximum permissible water content of a product can be safely maintained; this increases quality and reduces costs
Saves energy by controlling the drying process
Very accurate measurement results (up to 0.1 % accuracy, depending on the material)
Measures the total water content, not just the surface
Robust design, suitable for extreme environmental conditions
Encapsulated sensor, protected against humidity and vibrations
Highest ATEX classification (dust: zone 20; gas: zone 0)
Simple installation and retrofitting, e.g. on conveyor belts, screw conveyors, pipes and chutes

Humy 301 (1)

Typical Applications

Many companies rely on laboratory testing, which:

Is time-consuming
Provides delayed results
Is based on random sampling
The HUMY 301 inline moisture measurement system offers a superior alternative
Provides real-time, continuous moisture measurement
Enables immediate response to moisture changes in the process

Measurement data can be used to:

Control dryers
Enable automatic humidification
Continuously monitor and optimise the process

Product Description
Technical Data
Videos & Downloads

Properties

The sensor of the HUMY 301 is very robust and can be used flexibly. Sensor surfaces made of POM, Teflon and ceramic are available to process abrasive or aggressive materials. A high temperature option and an ATEX option for Zone 20 or Zone 0 are available.

More info

The device is equipped with an analog output and an RS485 Modbus interface. Windows software is used for calibration and analysis. Up to 24 calibration data sets can be stored, sixteen of which can be selected directly via digital inputs.

The HUMY is optimized for reliability and a long service life. Each sensor is sealed and tested under extreme temperatures. A self-monitoring function continuously checks the functionality of the device. It is therefore not surprising that HUMYs are used in extreme environments, e.g. in vibration channels

New functions

Detailed analysis options through graphical user interface
User-friendly calibration and parameterization
Extended batch mode function
Additional digital inputs, e.g. for product switching, up to 16 products
Faster data acquisition thanks to new microprocessor
Long-term data storage for offline analysis and offline calibration
Simultaneous display of 8 measured values / measuring systems

Humy 301(1)

Parameter	Specification
Housing material	Stainless steel (1.4301 or 1.4307 optional)
Sensor surface	K = POM C = Ceramic (optional) T = Teflon (optional) S = Ceramic + Teflon (optional)
Environment temperature	0°C to +70°C (K/C version) 0°C to +80°C (T/S version)
Process temperature	0°C to +90°C (non-ATEX) 0°C to +120°C (non-ATEX with high temperature option) 0°C to +70°C (ATEX with K/C) 0°C to +90°C (ATEX with T/S)
Process pressure	6 bar (temporarily up to 10 bar)
Protection class	IP67
Outputs	RS485 for connection with the transmitter
Cable	Shielded 4-pole cable, 3 m standard (up to 500 m on request)
Dimensions	100 mm × 51.5 mm
Weight	1300 g
