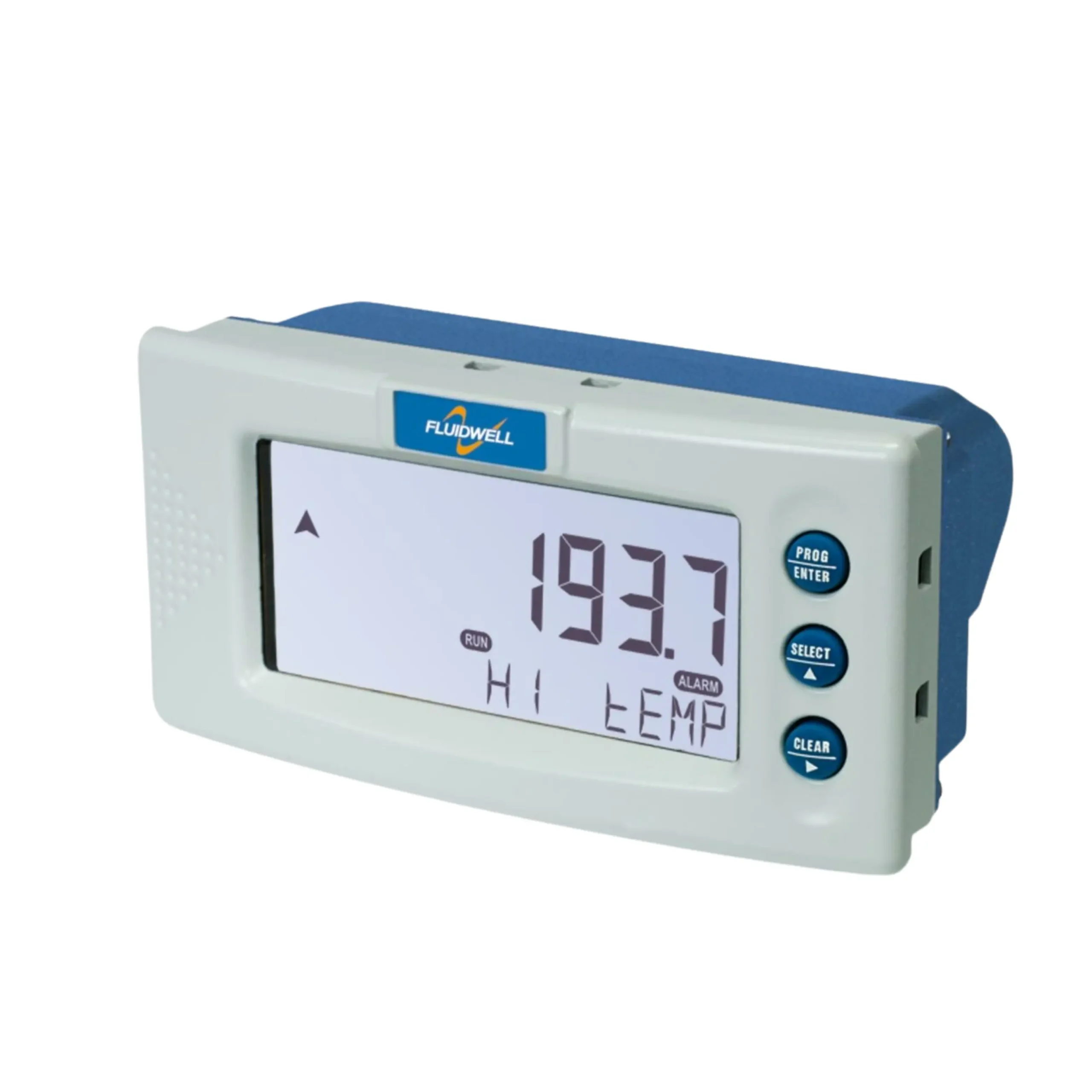

D043 DIN Panel mount – Temperature Monitor
The D043 is a versatile, panel mount temperature indicator with continuous temperature monitoring feature. It has one low temperature and one high temperature alarm value.

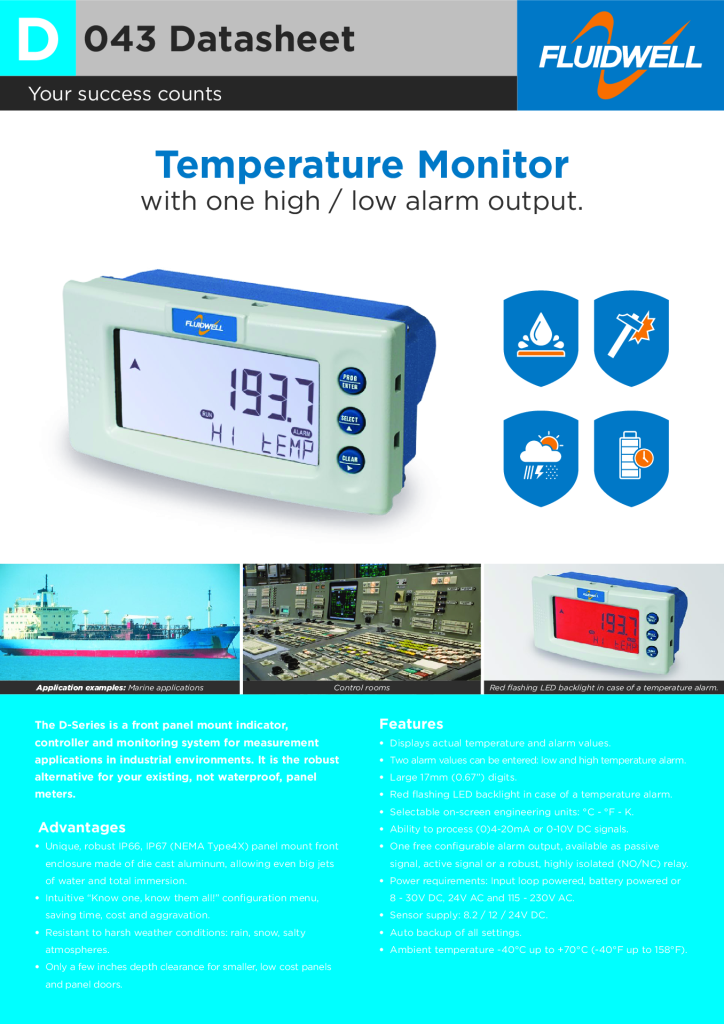

Datasheet
Measure. Monitor. Repeat.
For better insights, better decision-making and better process performance.
Key Features & Benefits
- Displays actual temperature and alarm values.
- Two alarm values can be entered: low and high temperature alarm.
- Temperature: six large 17mm (0.67) digits.
- Selectable on-screen engineering units: °C – °F – K.
- Ambient temperature: -40°C to +70°C (-40°F to 158°F).
- Red flashing LED backlight in case of a temperature alarm.
- Easy configuration with clear alphanumerical display.
- Aluminum DIN front panel of 144 x 72mm (5.67” x 2.83”) according DIN 43700 / IEC 61554.
Typical Applications
- The D043 fits in applications where continous temperature measurement and monitoring is important.
- The D-Series is a DIN-sized display and the better alternative for your existing, not waterproof, front panel mount indicators in extreme weather outdoor applications or e.g. in food industries where working environments are often cleaned with powerful water jets.
Advantages
- Unique, robust IP66, IP67 (NEMA Type4X) panel mount front enclosure made of die cast aluminum, allowing even big jets of water and total immersion.
- Familiar easy operation with the Fluidwell "Know one, know them all" configuration structure, saving time, cost and aggravation.
| Signal Inputs | |
|---|---|
| Temperature Inputs | (0)4 – 20mA 0 – 10V DC |
| Signal Outputs | |
| Alarm Outputs | Function: Configurable alarm output for high, low or combined temperature alarms. Type: One passive signal output, an active signal output or a robust, highly isolated (NO/NC) relay. |
| Analog Outputs | None |
| Supply | |
| Power Supply | Basic: 8 – 30V DC (no real sensor supply) Long-life lithium battery 4 – 20mA input loop-powered 24V AC/DC + sensor supply 115 – 230V AC + sensor supply |
| Sensor Supply | 8.2V, 12V & 24V DC |
| Hazardous Area | |
| Intrinsically Safe | For intrinsically safe applications we recommend the F-Series. |
| Communication | |
| Communication | Modbus communication available on F1-Series products. HART communication is available with the F018 Flow Rate Monitor / Totalizer. |
