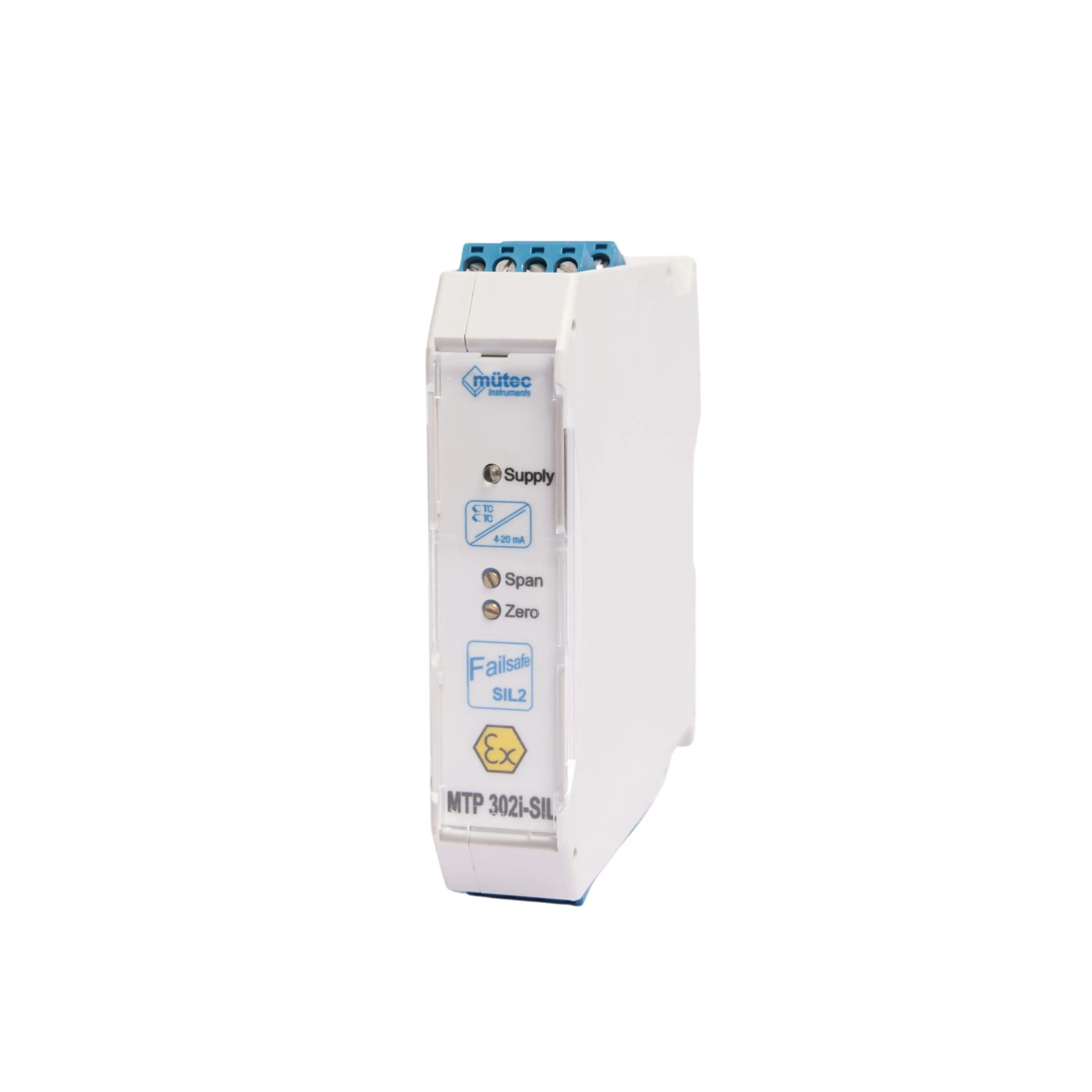

MTP 302I-SIL
Especially developed according to the needs of the LDPE industry, the MTP302 has the same functionality as the MTP 300, but offers an additional output with an extended measurement range up to 1200 °C. This provides valuable data in case of decompositions, while standard units are limited to 400°C. With the MTP 302 the operator now has access to critical parameters such as peak and average temperature as well as cooling behavior which play a significant role for turnarounds and maintenance.

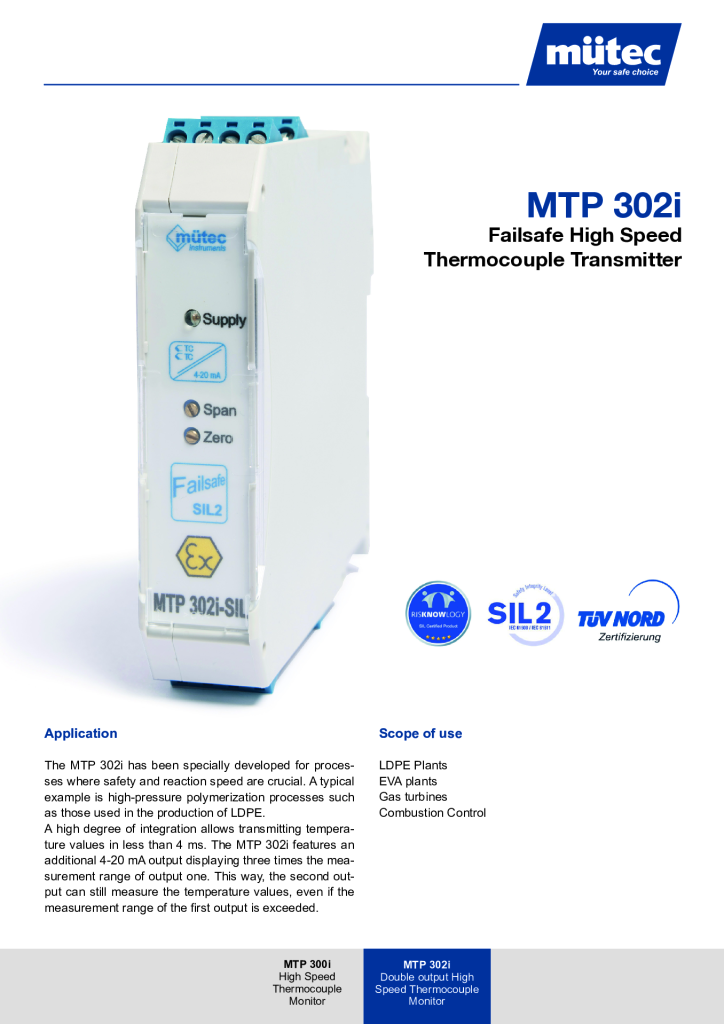

Datasheet
Measure. Monitor. Repeat.
For better insights, better decision-making and better process performance.
Key Features & Benefits
- Failsafe thermocouple measurement
- Fastest reaction time (4 ms)
- Additional output with higher range
- All thermocouple types are supported
- Robust design with high dielectric strength
- SIL2 according to IEC/EN 61508
- ATEX rating up to zone 0
- High safety (4,7 FIT)
- 10-year proof test interval
Typical Applications
- High-pressure polymerization processes, e.g., LDPE production
- Safety-critical processes requiring fast response times
- Temperature monitoring in processes with rapid changes
- Applications needing redundant measurement outputs for extended range monitoring
Safety Features
Featuring a safety-by-design approach, the MTP 302i provides a wide range of diagnostic functions. Apart from internal self-diagnosis, wire breaks or loose contacts can also be detected. The device is intrinsically safe and requires intrinsically safe barriers for supply.
More info
| Safety Property | Value |
|---|---|
| FMEDA Category | SIL 2 |
| Device Type | Type B |
| HFT | 0 |
| SFF | 93% |
| PFDavg | 5.63E-5 |
| Safe Failure Rate | 78.5 FIT |
| Safe Detected Failure Rate | 0 FIT |
| Safe Undetected Failure Rate | 78.5 FIT |
| Dangerous Failure Rate | 66 FIT |
| Dangerous Detected Failure Rate | 61.3 FIT |
| Dangerous Undetected Failure Rate | 4.7 FIT |
| Parameter | Specification |
|---|---|

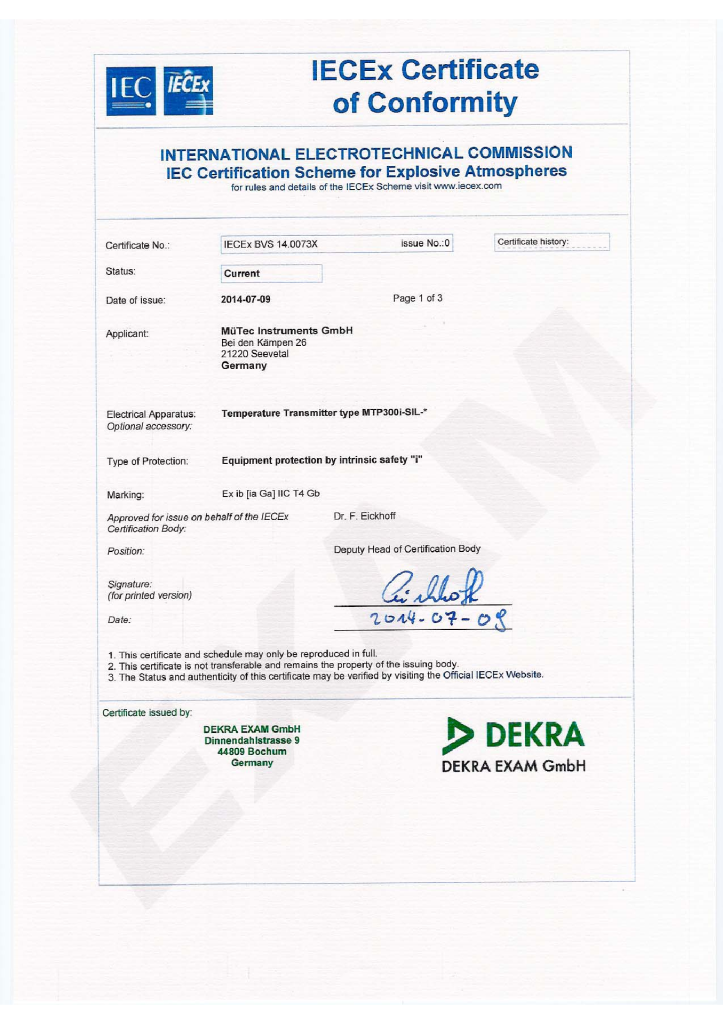

| Certificate | SIL 2 according to IEC 61508, ATEX: II 2(1)G Ex ib [ia Ga] IIC T4 Gb |
| Thermocouple Inputs | U0 = 1 VDC, I0 = 1.8 mA, P0 = 0.5 mW, C0 = 10 μF, L0 = 100 mH |
| Analog Output Supply | Ui = 28 VDC, Ii = 95 mA, Pi = 655 mW, Ci = 26 nF, Li = negligible |
| Supply Voltage Range | 12.5 V … 28 V |
| Current Range | >3.5 … <24 mA |
| Load | 70 … 800 Ω |
| Cold Junction Compensation | -10° … 70° C |
| Status LEDs | Luminosity corresponds to 4 … 20 mA, Behavior in case of failure: low |
| Power Consumption | Max. 560 mW, Min. 50 mW |
| Temperature | Operating: -10° C … +70° C, Storage/Transport: -20° C … +80° C |
| Permissible Humidity | 10% … 95% r.H, no condensation |
| Max. Operating Altitude | < 2000 m above mean sea level |
| Temperature Coefficient | <0.05% / 10K (max.) |
| Galvanic Isolation | EN 60079-11 |
| EMC | EN 61326-3-2 |
| PCB Material | FR4 |
| Housing Material | Polyamide |
| Protection Class | IP20 |
| Flammability | UL94 V0 |
| Mounting Type | 35 mm DIN rail |
