NIVUFLOW 550

Name: NIVUFLOW 550
Brand: NIVUS
Availability: InStock

Radar Flow Meter

The contactless low-maintenance radar sensor provides reliable operation even at very high discharge velocities with low flow levels. Dynamic hydraulic models for various channel shapes based on varying filling levels enable accurate detection of the real flow rate.

Enquire Now

Measures: Flow

Industries: Data Centre, Discharge Licence Compliance, Environmental Monitoring, Pharma, Utilities, Wastewater, Water

Brochure

Measure. Monitor. Repeat.

For better insights, better decision-making and better process performance.

Key features & benefits:

Low maintenance through contactless radar sensor
Easy installation and operation
Ideal for use with all liquids, even aggressive / abrasive media
Modular flexible installation
IoT-ready with global 4G connectivity for highest availability and digital services
Energy-saving cycle operation for self-sufficient systems

NivuFlow 550

Typical applications for NivuFlow 550

Measurement places with high pollutant load and sedimentation
Measurement places featuring bed load / debris
Measurement places with installation restrictions in the channel
Shooting discharge at low flow levels and high velocities

Product Description
Technical Data
Videos & Downloads

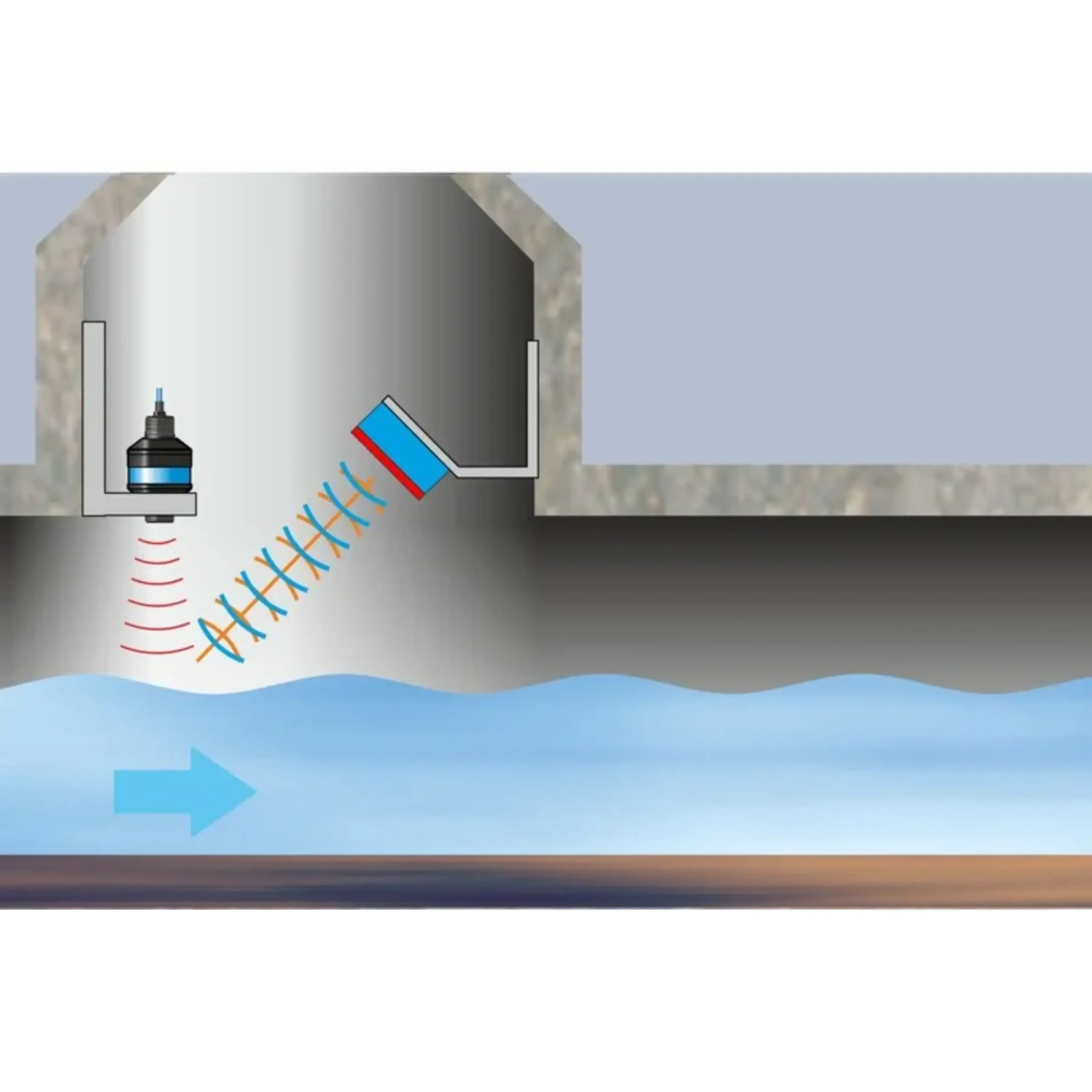

Contactless Radar Flow Metering.

More info

Easy Installation and Handling

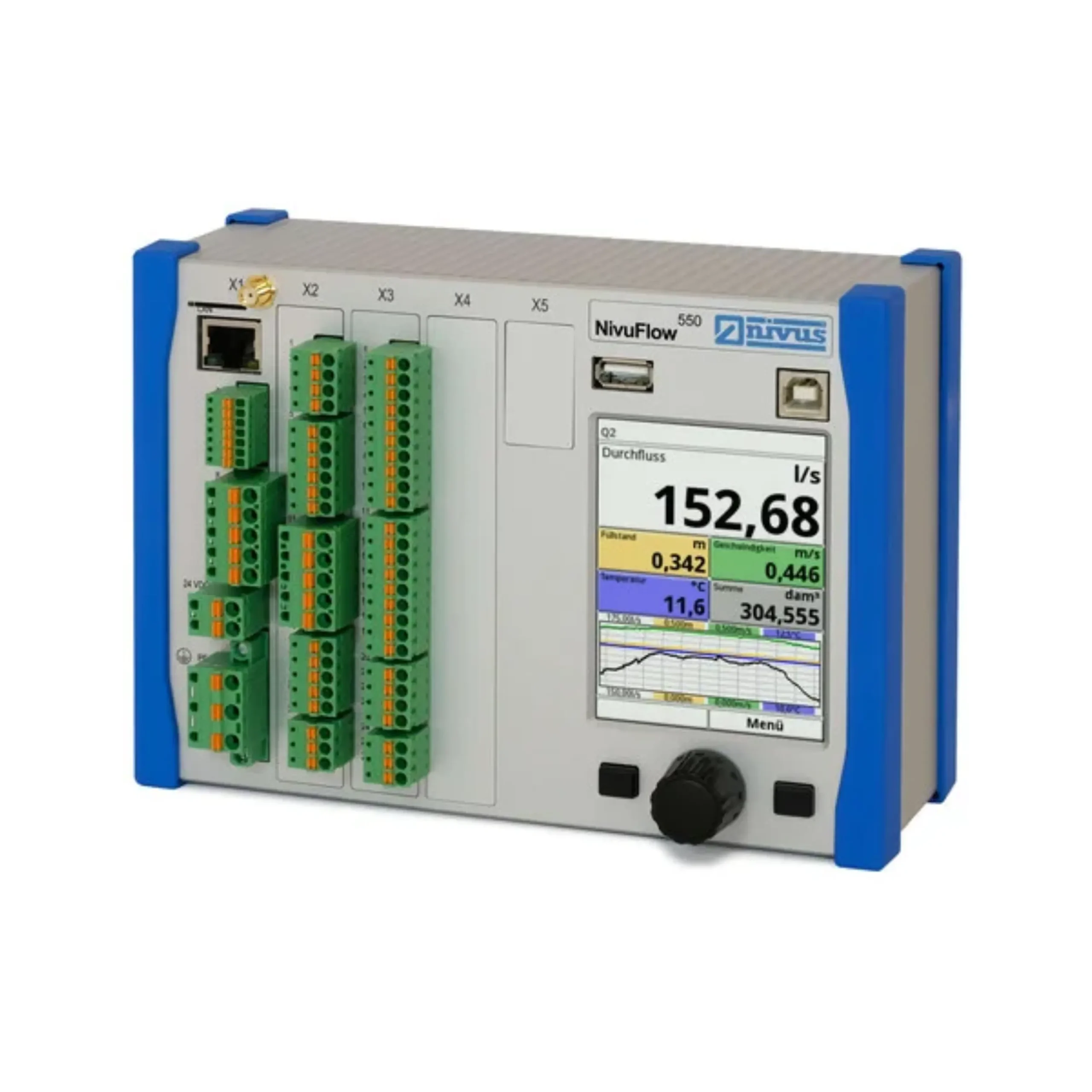

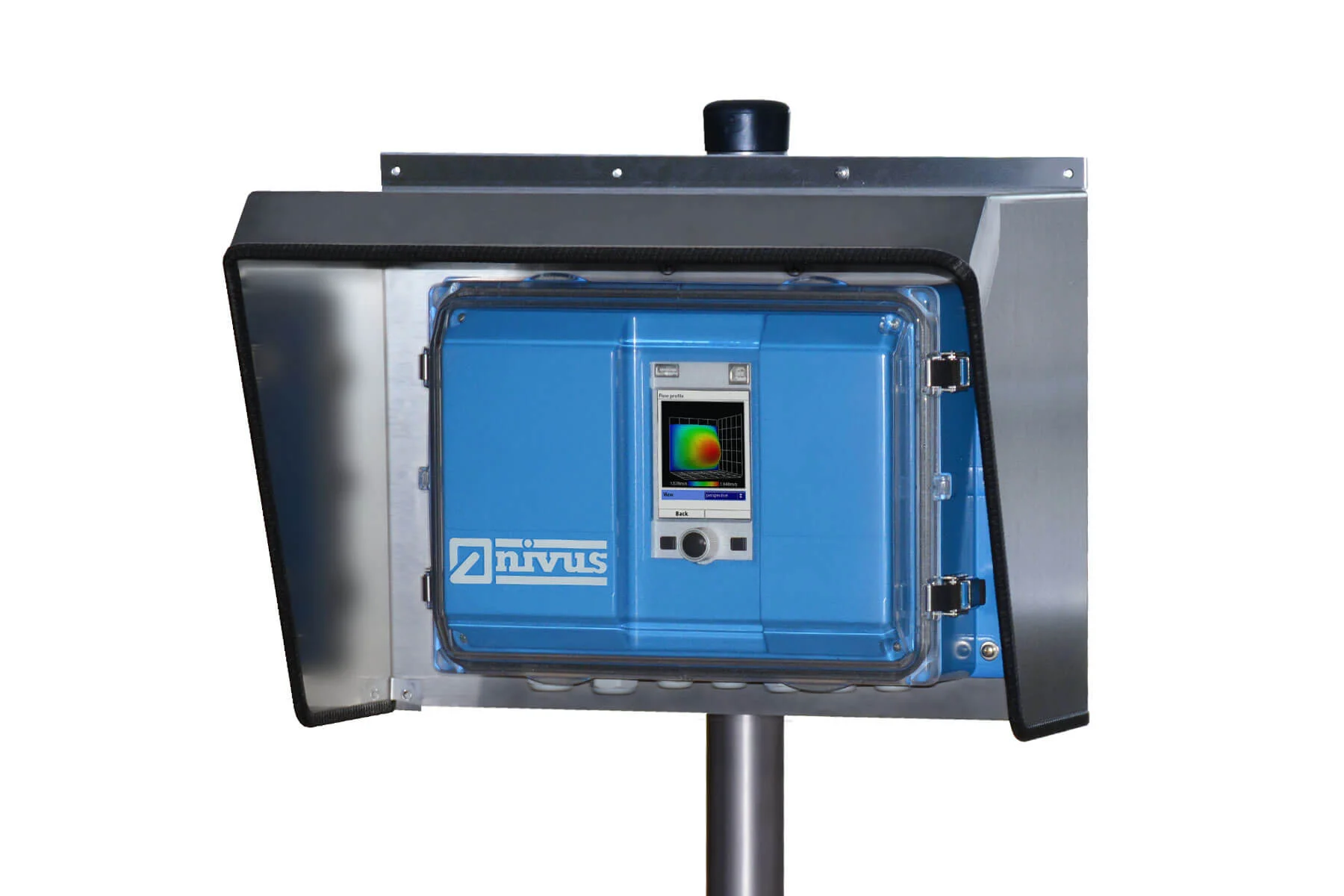

Due to DIN rail mounting options the compact transmitter saves space and can be installed easily in control cabinets. Moreover the NivuFlow 550 is available with a special protected field enclosure for use under harsh ambient conditions. The large graphic display permits quick and easy commissioning of the flow meter system.

Due to the modular construction of our radar flow meter system we can provide the appropriate solution for each application

NivuFlow 550 provides extended diagnostic options and facilitates in-depth analysis of running processes on site. The transmitter software is in line with current requirements. Future-proof protocols and versatile communication and integration options open many ways for operators to integrate the devices into higher systems such as SCADA or process control systems.

Technical Data – Common
Power supply	100 to 240 V AC, +10 % / -15 %, 47 to 63 Hz or 9-36 V DC
Power supply connection	AC: Plug-in and screw-on spring-loaded terminal block DC/DL: Plug-in spring-loaded terminal block
Maximum power consumption	AC: 30 VA / DC: 20 W
Typical power consumption	1x OFR + 1x i-Sensor + 1 Relay energized 230 V AC: 14 VA / 6.8 W 24 V DC: 6.2 W
Enclosure	DIN rail: Aluminium and Plastic, Weight: approx. 1,300 g Field enclosure: Polyamide PA / Polycarbonate PC, Weight: approx. 4,000 g (incl. NF550 and iXT0 211) Dimensions: see Chap. “16.1 Enclosure Dimensions”
Protection class / Impact resistance	DIN rail: IP20 / IK08 Field enclosure: IP67 (optional: IP68) / IK08
Operation conditions	Protection Class I, Overvoltage Category II, Pollution Degree 2
Operation altitude	AC device: up to 3,000 m above sea level Relay voltages >150 V: max. 2,000 m above sea level
Operating temperature	DC: -20…+70 °C AC: -20…+65 °C
Storage temperature	-30…+80 °C
Max. ambient temperature for installation and operation	+50 °C
Max. humidity	80%, non-condensing
Display	Daylight-compatible TFT colour graphic display, 240×320 pixels, 65,536 colours
Parameterisation / Programming	Menu-guided via rotary pushbutton and two function keys, languages: EN, DE, FR, IT, ES, PT, SE, DK, FI, PL, HU, RO, CZ, RU, KO, CN
Connection	General
