NIVUFLOW mobile 550

Name: NIVUFLOW mobile 550
Brand: NIVUS
Availability: InStock

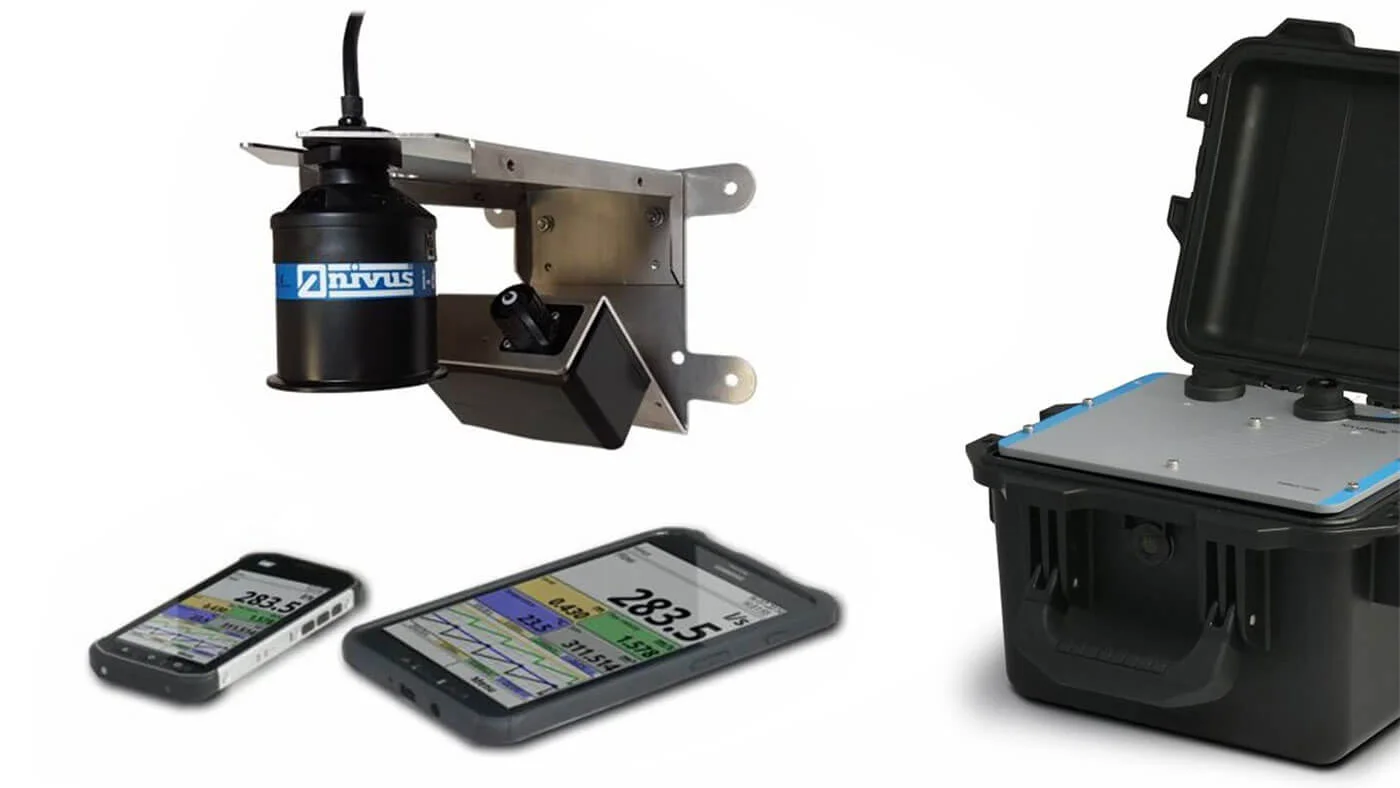

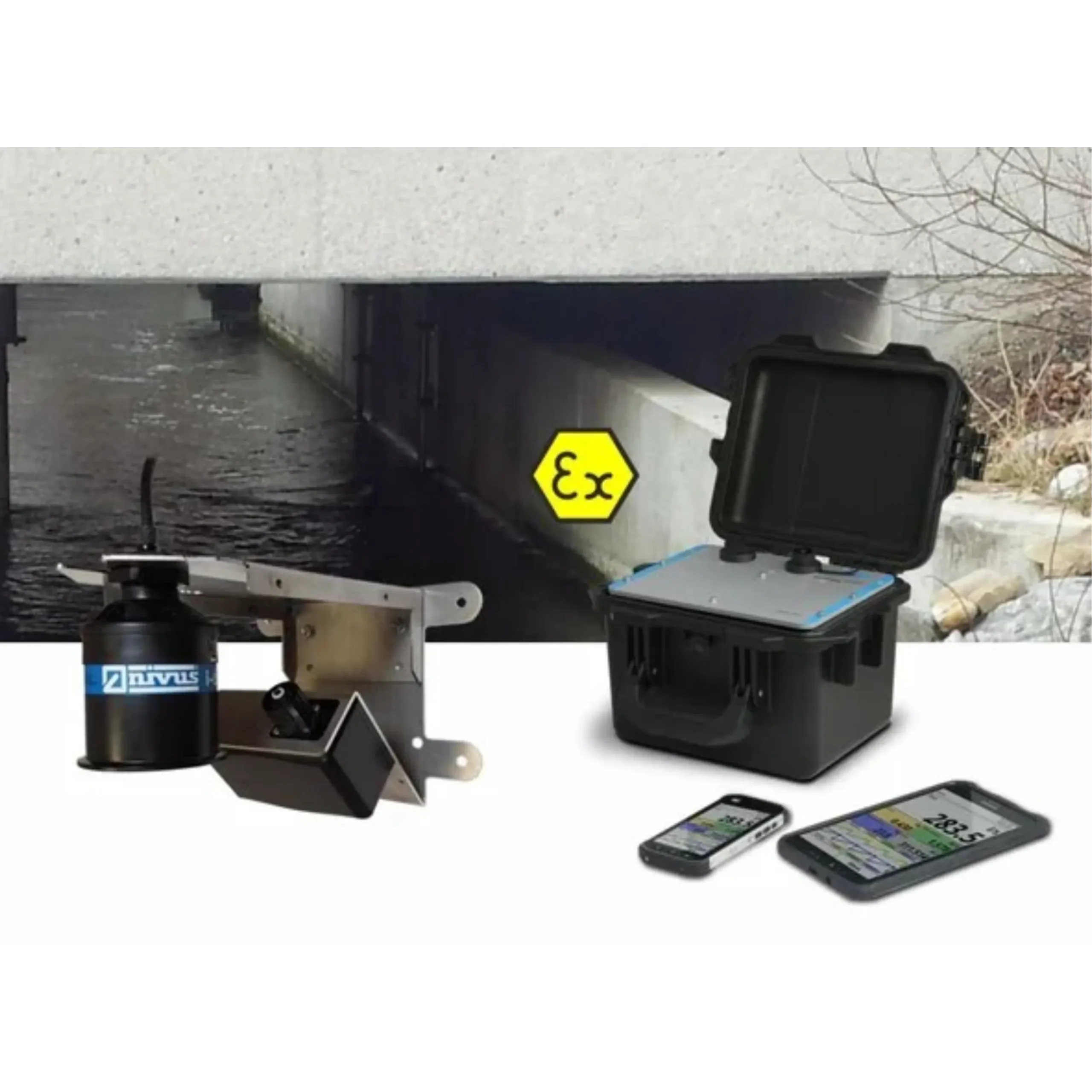

NivuFlow Mobile 550 permits contactless flow metering in a variety of different situations. Hydraulic algorithms determine the exact flow profiles for almost all shapes.

The modern operating concept via web browser in connection with tablet, smartphone etc. is intuitive and enables quick commissioning. Here, a quick start assistant guides you through the most relevant parameter settings. While setting parameters, the remaining operation time is indicated in days.

The optional built-in modem provides automatic data transmission via e-mail, FTP or to the NIVUS WebPortal. The energy-efficient system allows for accurate scheduling of maintenance visits and very long operation times.

Enquire Now

Measures: Flow

Industries: Data Centre, Discharge Licence Compliance, Environmental Monitoring, Pharma, Utilities, Wastewater, Water

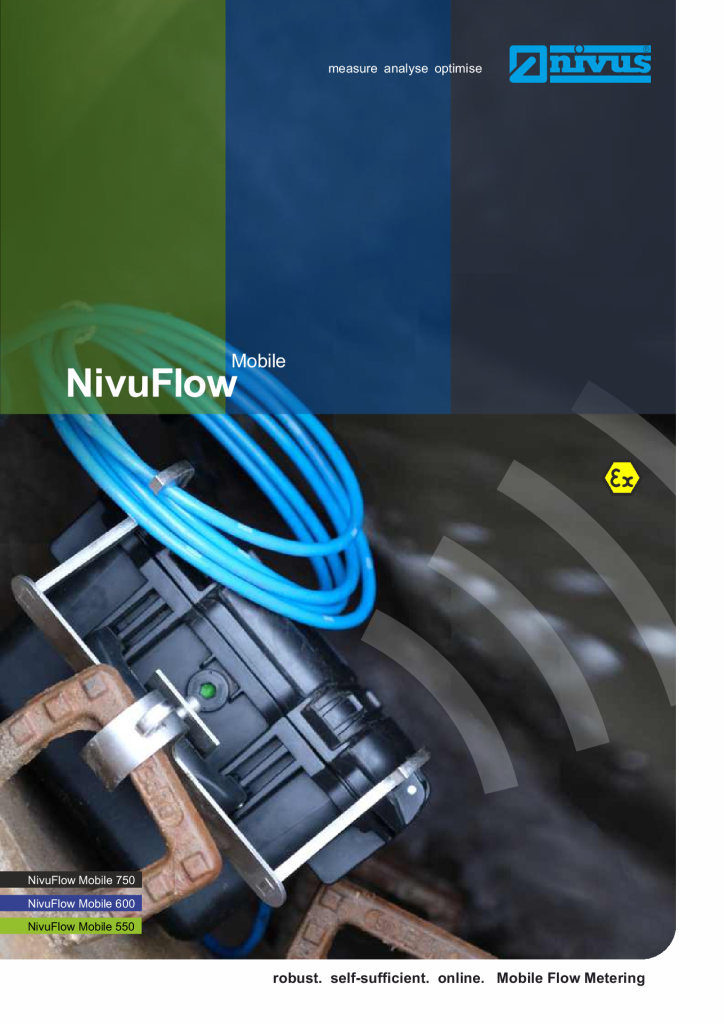

Brochure

Measure. Monitor. Repeat.

For better insights, better decision-making and better process performance.

Key features & benefits

Contactless mobile flow measurement
Permanent measurement in the absence of infrastructure
Very easy operation
Quick commissioning
LTE modem with worldwide coverage
Maintenance visits can be accurately scheduled

Typical Applications

WWTP intakes
Irrigation channels
Tributaries

Product Description
Technical Data
Videos & Downloads

NivuFlow Mobile 550 permits contactless flow metering in a variety of different situations. Hydraulic algorithms determine the exact flow profiles for almost all shapes.

Technical Data – Doppler Radar
Measurement principle	Doppler Radar
Power supply	2x rechargeable batteries 12V/15 Ah, lead gel Charger: 100 – 240 V AC / 50 to 60 Hz / 50 VA
Enclosure	Material: HPX high-performance synthetic resin Weight: approx. 4.7 kg (without battery and hoop guards) Protection: IP68 closed / IP67 open
Operating temperature	−20°C to +50°C −15°C to +50°C for Ex-Zone 1
Storage temperature	−20°C to +70°C
Max. humidity	90 %, non-condensing
Display	Via mobile device; Status LED (RGB)

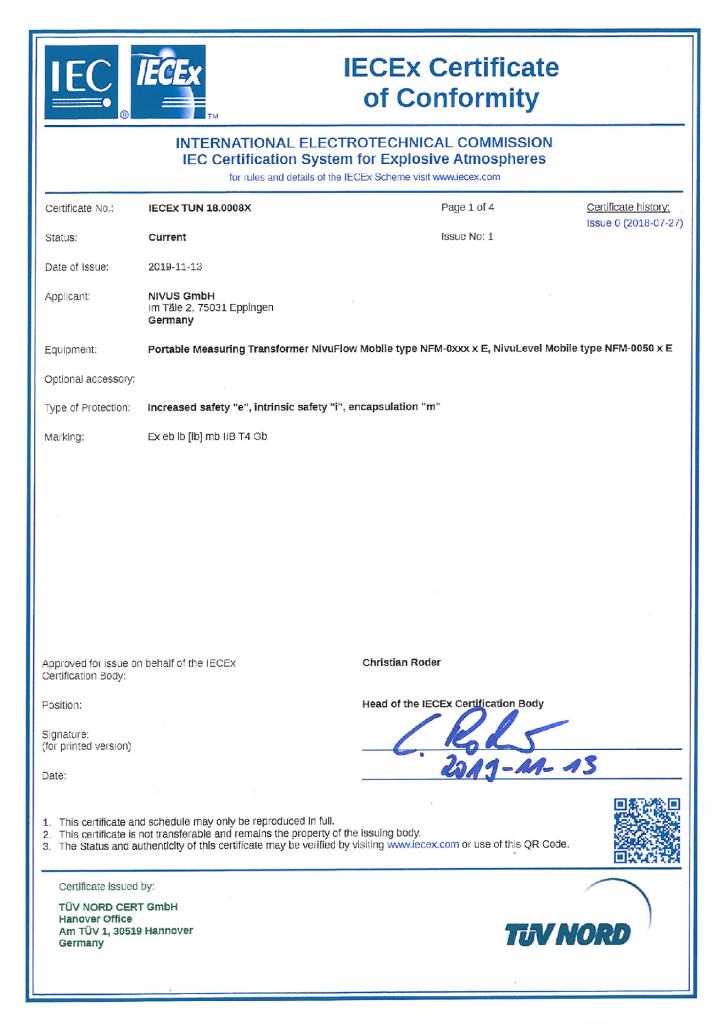

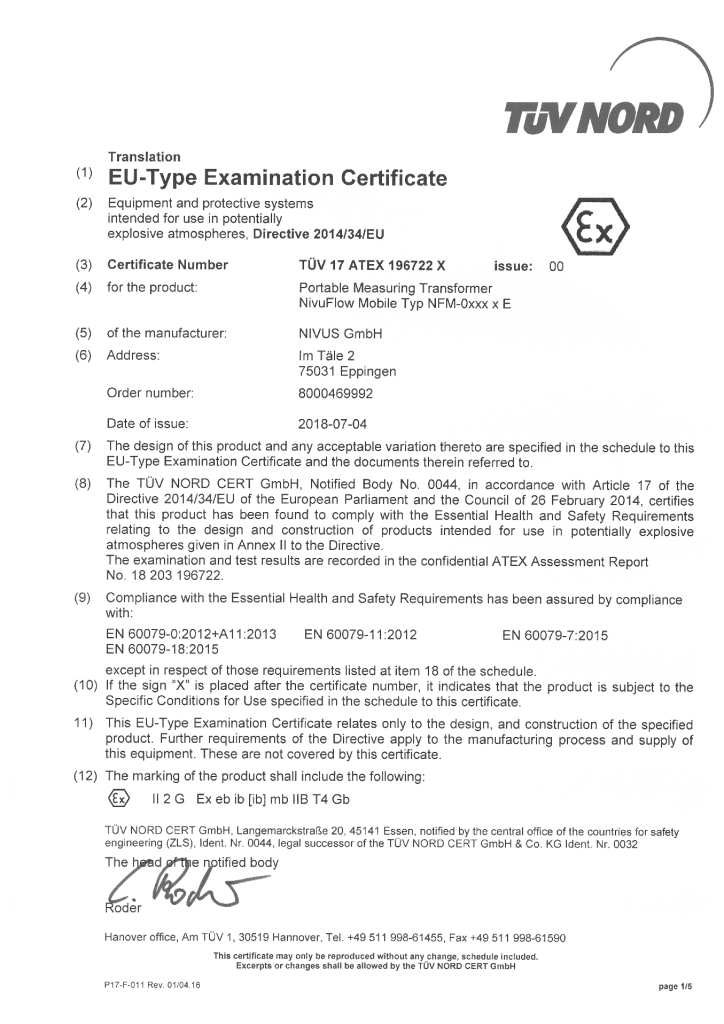

Ex-Approval	Optional: II 2G Ex eb ib [ib] mb IIB T4 Gb TÜV 17 ATEX 196722 X / IECEx 18.0008X
Operating time	~1 year on one battery charge* (two batteries) *Calculated with storage cycle 60 minutes and daily data transmission; may vary with measurement spot or battery age
Operation	Magnetic switch, via WiFi using smartphone, tablet, notebook
Inputs	1x socket for OFR-Radar sensor or ConnectorBox for external mains adaptor/power supply 2x 0/4 – 20 mA (active/passive) 1x 0/4 -20 mA (passive) 1x active digital input 1x level sensor socket 1x antenna socket
Outputs	Via ConnectorBox: 1x analog output 0 – 10 V 1x potential-free digital output as SPDT / bistable 1x USB for readout of values via USB stick
Save mode	5 sec. – 360 min, continuous, cyclic or event-based
Data memory	Internal memory, covering 1.5 years at a measurement interval of 5 minutes
Data transmission	Via plug-in USB stick, WLAN, GPRS, UMTS, LTE
