NIVUFLOW 7550
Hybrid Flow Measurement
NivuFlow 7550 is a hybrid measurement system which was particularly developed for flow metering in part filled pipes, channels and surface waters. Mainly in difficult applications the flow meter stands out for reliable results thanks to its advantages by using two measurement technologies.
Brochure
Measure. Monitor. Repeat.
For better insights, better decision-making and better process performance.
Key features & benefits:
- Redundant flow measurement
- Contactless Radar surface velocity measurement
- Ultrasonic sidewards velocity profile sensor
- Two independent flow measurement technologies increase the accuracy and reliability
- All sensors are above the area of sedimentation,
- No maintenance
- Reliable measurement independent of wave formations, storm conditions, as well as in low flow level circumstances
- Self-learning system with stored dynamic hydraulic models
- IoT-ready with global 4G connectivity for highest availability and digital services
Typical Applications
- Continuous and reliable flow metering in overflow situations
- Sedimentation detection with ultrasonic level measurement in case of overflow
- Measurement places featuring high dirt loads and sedimentation
- Measurement places featuring bed load / debris
- Measurement places with limited installation options within the channel
- Reliable flow metering in shooting discharge and low flow levels
Contactless Radar Flow Measurement
The contactless low-maintenance radar sensor provides reliable operation even at very high discharge velocities with low flow levels. Dynamic hydraulic models for various channel shapes based on varying filling levels enable accurate detection of the real flow rate.
More info
Ultrasonic Flow Measurement as Overflow Sensor

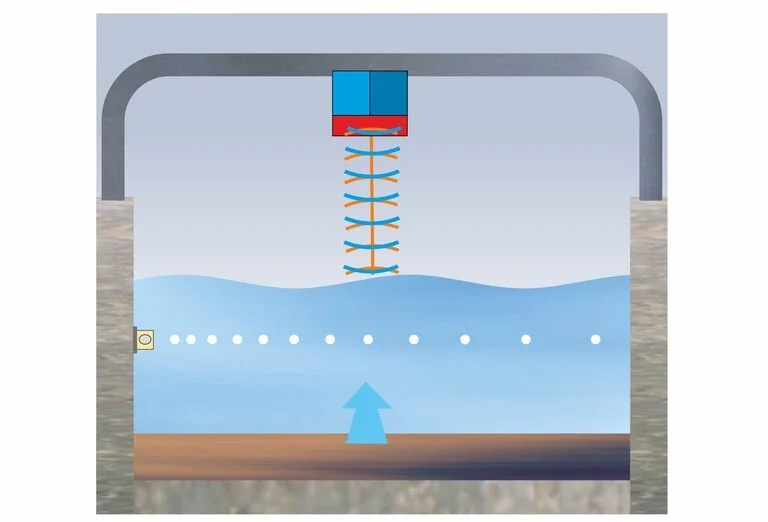

The ultrasonic cross correlation sensor can be used as overflow sensor. In such cases the sensor provides reliable and accurate results in overflow situations where radar sensors cannot be used for measuring. Thanks to the flow profile detection and the detection of sedimentation on the bottom the flow rate is determined very accurately. Information on sedimentation is also considered for further measurements using the radar system.
Ultrasonic Flow Measurement as Redundant Measurement
The ultrasonic sensor can be used as permanent redundant measurement too. Installing the sensor on the side walls above the sedimentation helps to avoid soiling. The detection of local flow velocities covers the entire channel width and guarantees the determination of very accurate flow profiles. Pre-programmed hydraulic models increase the accuracy of the measurement system.
Easy Installation and Handling
Due to DIN rail mounting options the compact transmitter saves space and can be installed easily in control cabinets. Moreover the NivuFlow 7550 is available with a special protected field enclosure for use under harsh ambient conditions. The large graphic display permits quick and easy commissioning of the flow meter system.
NivuFlow 550 provides extended diagnostic options and facilitates in-depth analysis of running processes on site. The transmitter software is in line with current requirements. Future-proof protocols and versatile communication and integration options open many ways for operators to integrate the devices into higher systems such as SCADA or process control systems.
| Technical Data – Common | |
|---|---|
| Power supply | 100 to 240 V AC, +10 % / -15 %, 47 to 63 Hz or 9-36 V DC |
| Power consumption | 14 VA typical |
| Enclosure | Aluminium, plastic (transmitter enclosure); Plastic (field enclosure) |
| Protection | IP 20; IP 68 with optional field enclosure |
| Operating temperature | −20°C to +70°C |
| Max. humidity | 80%, non-condensing |
| Display | 240 x 320 pixels, 65,536 colours |
| Range of operation | Rotary pushbutton, 2 function keys, menus in English, French, and other languages |
| Connection | Plug with cage clamp terminals |
| Inputs | Up to 7 x 4–20 mA, up to 4 x RS 485 |
| Outputs | Up to 4 x 0/4–20 mA, up to 5 x relays (SPDT) |
| Data memory | 2.0 GB internal memory, flexibly expandable, readout on faceplate via USB stick |
| Communication (optional) | Modbus, HART® |
| Measurement uncertainty | Flow (Q): ±5% typical; ±2% under reference conditions |
| Measurement principle | Radar in combination with ultrasonic cross-correlation |
