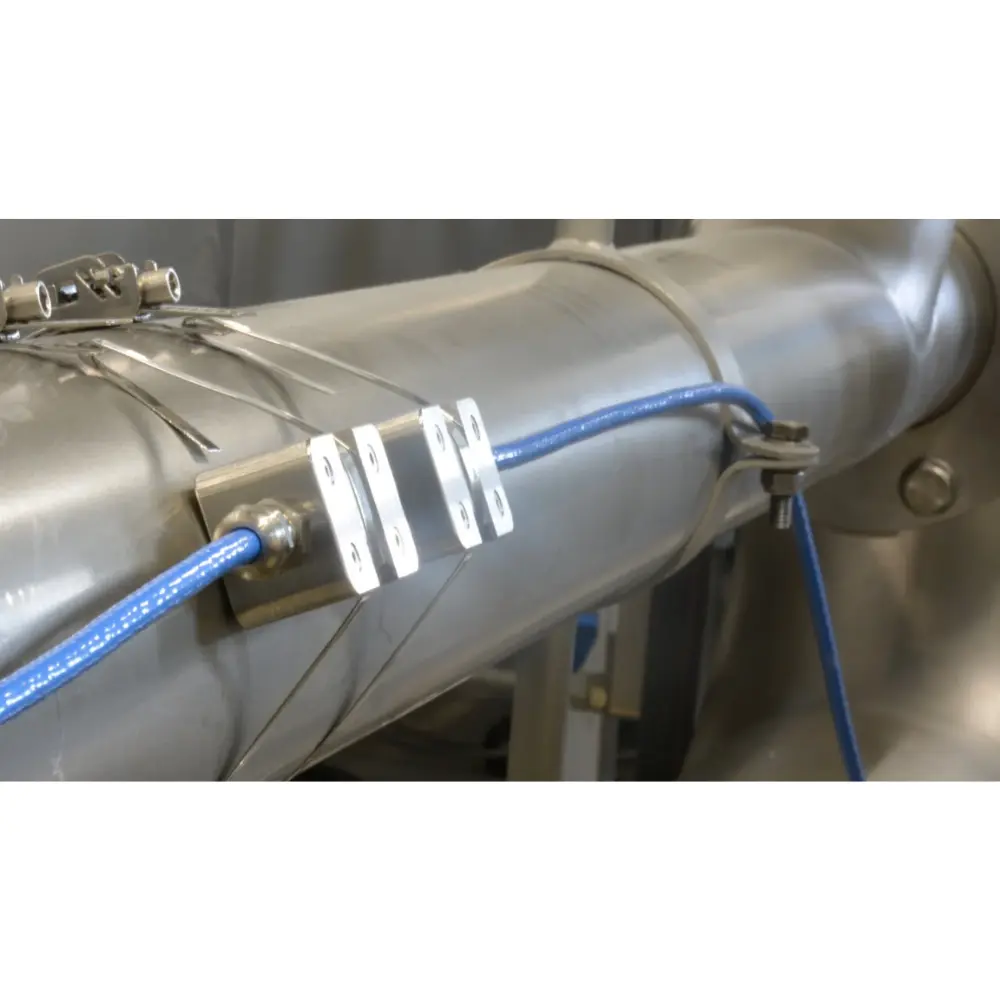

NIC Clamp-On Sensor
Clamp-on ultrasonic flow meter is ideal for retrofitting system at flow measurement places as well as for monitoring of water networks. Unaffected by pressure and temperature.
Measure. Monitor. Repeat.
For better insights, better decision-making and better process performance.
Key Features & Benefits
- Non-contact clamp-on ultrasonic measurement
- Suitable for clean to polluted media
- Designed for full pipes with various dimensions
- No contact with the measurement medium, making it ideal for drinking water applications
- Quick and easy installation with minimal effort
- Suitable for high-pressure applications
- Suitable for aggressive and abrasive media
- Uses the ultrasonic transit time principle
- Provides high-accuracy flow measurement
- Ideal for retrofitting existing systems
- Suitable as a replacement for existing flow measurement systems
- Includes matched mounting materials for reliable installation
- Supports continuous flow measurement and data storage
Typical clamp-on sensor applications
- Fixed measurements in full pipes in hydropower plants, pump stations and similar
- Monitoring of drinking water plants and networks
- Irrigation systems
- Inlets and outlets conducting cooling water or circulation
- WWTP outlets
- Dirty water pipelines
- Industrial flow measurements, process water
- Retrofitting and Replacement of existing flow measurement system
and many more
Clamp-on ultrasonic flow meter sensors are part of a measurement system for continuous flow measurement and storage of the recorded measurement data. They can be used for clean to polluted media.
The sensors of this non contact flow meter are used for flow measurement in full pipes featuring various dimensions.
Thanks to the clamp-on design there is no contact between sensor and the measurement medium. The sensors therefore are particularly suitable for use in the drinking water area. Measurement tasks can be carried out very easy within very short time without any greater effort. This applies for high pressures as well as for aggressive and abrasive media.

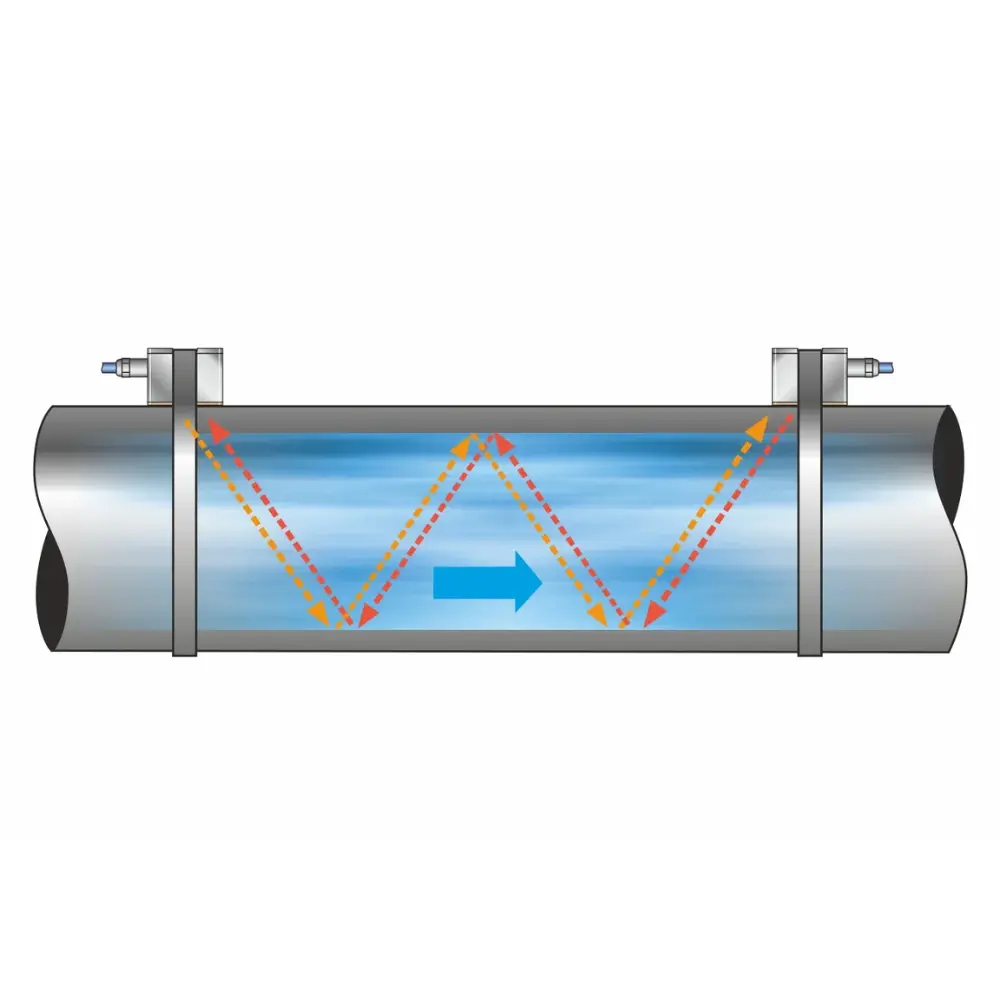

Readings are detected based on the ultrasonic transit time principle, which allows versatile use with high accurate measurement results. Thanks to perfectly matched mounting material the system is ideal for retrofitting or as replacement system for existing flow measurements.
| Measurement principle | Ultrasonic transit time difference as contactless sensors |
|---|---|
| Material | PEEK and stainless steel 1.4301/AISI 304 Other materials upon request |
| Measurement frequency | 1 MHz, 500 kHz |
| Velocity range | ±25 m/s (minimum flow velocity: 0.01 m/s) |
| Internal Pipe Diameter | 0.05…6.00 m (DN50 – DN6000) NIC-CO01: DN50 – DN2500 NIC-CO50: DN300 – DN6000 |
| Protection | IP 68 |
| Ex-Approval | ATEX / IECEx Zone 1 (optional) |
| Operating temperature | −40 °C ≤ Ta ≤ +80 °C |
| Storage temperature | −40 °C to +80 °C (non-condensing) |
| Cable lengths | 7/10/20/30/40/50 m |
| Accuracy | Volume flow (Q): ±0.5 % of measured value with process calibration |
