NivuFlow 600 WS

Name: NivuFlow 600 WS
Brand: NIVUS
Availability: InStock

Flow transmitter for drinking water applications. Transmitter for accurate flow measurement using the ultrasonic transit time difference method with non-contact clamp-on sensors. Especially for drinking water applications.

Enquire Now

Measures: Flow

Industries: Data Centre, Discharge Licence Compliance, Environmental Monitoring, Pharma, Utilities, Wastewater, Water

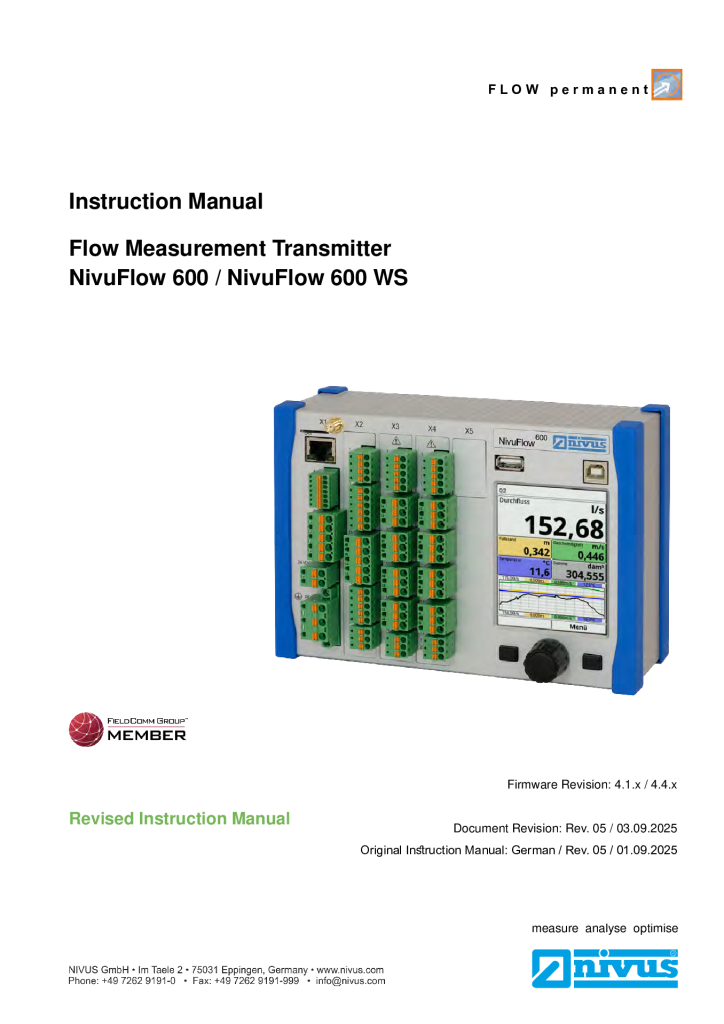

Instruction Manual

Measure. Monitor. Repeat.

For better insights, better decision-making and better process performance.

Key features & benefits:

Easy installation without interrupting the supply, no need to cut the pipeline or flush the pipe
Absolute hygiene, as it does not come into contact with the medium
Easy commissioning thanks to menu-supported sensor alignment
Intuitive, modern operating concept for quick and easy commissioning and diagnostics on site
IP68 field enclosure available
IoT-ready with global 4G connection for maximum availability and digital services
IP68 Sensors
High measurement accuracies even at lowest flow velocities
Calculation of the water temperature based on the speed of sound
For all common pipe materials and pipe linings in the water industry
Direct installation in the ground, no shaft construction required
Monitoring of all system-relevant parameters (flow rate, flow velocity and temperature)
Bidirectional measurement possible

Typical applications for NivuFlow 650

Flow measurement in drinking water tanks, pumping stations, treatment plants, pressure boosting systems
Flow measurement in the drinking water network, buried applications
Hygiene monitoring in drinking water networks based on temperature
Flow measurement of springs
Transfer shafts between water suppliers
Control of flow rates (pumping stations, treatment plants)

Product Description
Technical Data

The NivuFlow 600 WS measurement system was specially developed for drinking water applications. Using the transit time difference method, we are setting new standards for the measurement and monitoring of drinking water flows.

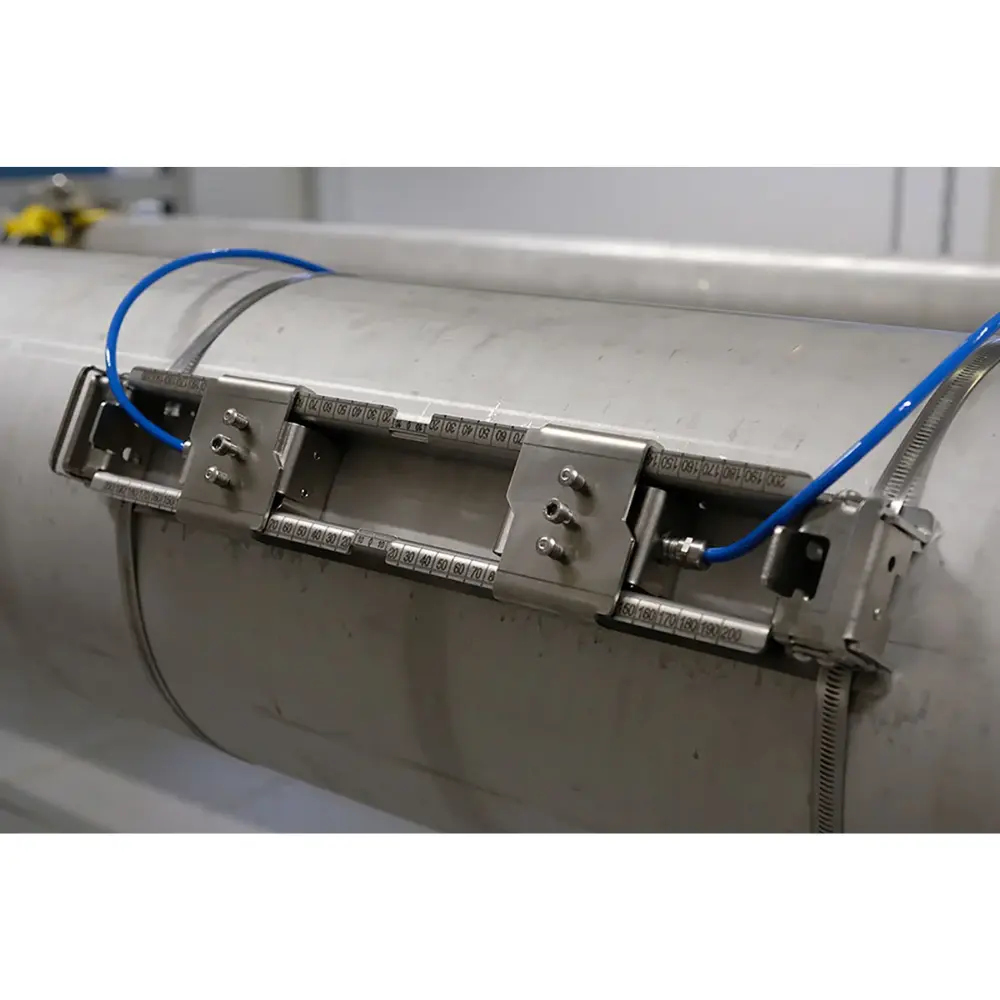

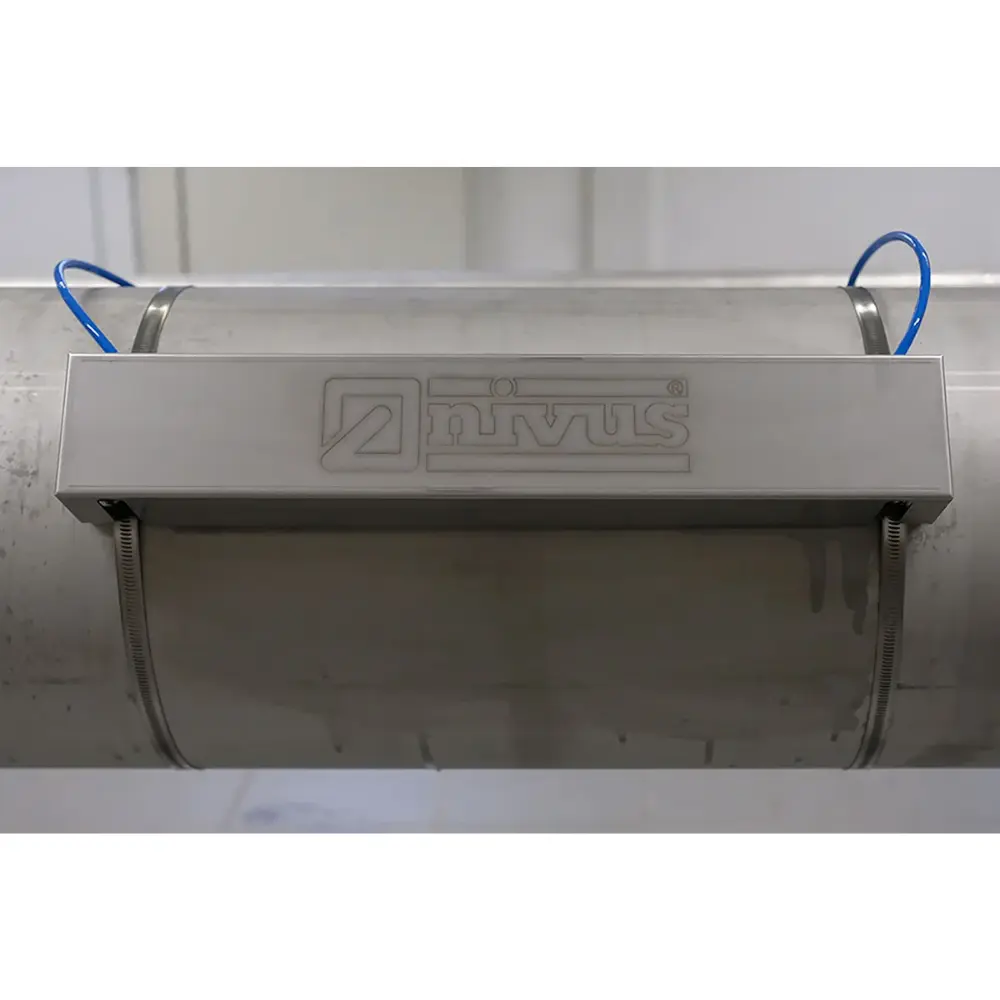

Thanks to our clamp-on sensors, the process does not have to be interrupted. Operations can continue smoothly while the measurement is set up within a few minutes. We also guarantee absolute hygiene, as our sensors have no direct contact with drinking water.

With the NivuFlow 600 WS, not only the flow rate, but also the flow velocity and water temperature can be reliably measured, even at very low flow velocities of up to 3 cm/s. Structural modifications to the cross-section to generate higher flow velocities are therefore no longer necessary.

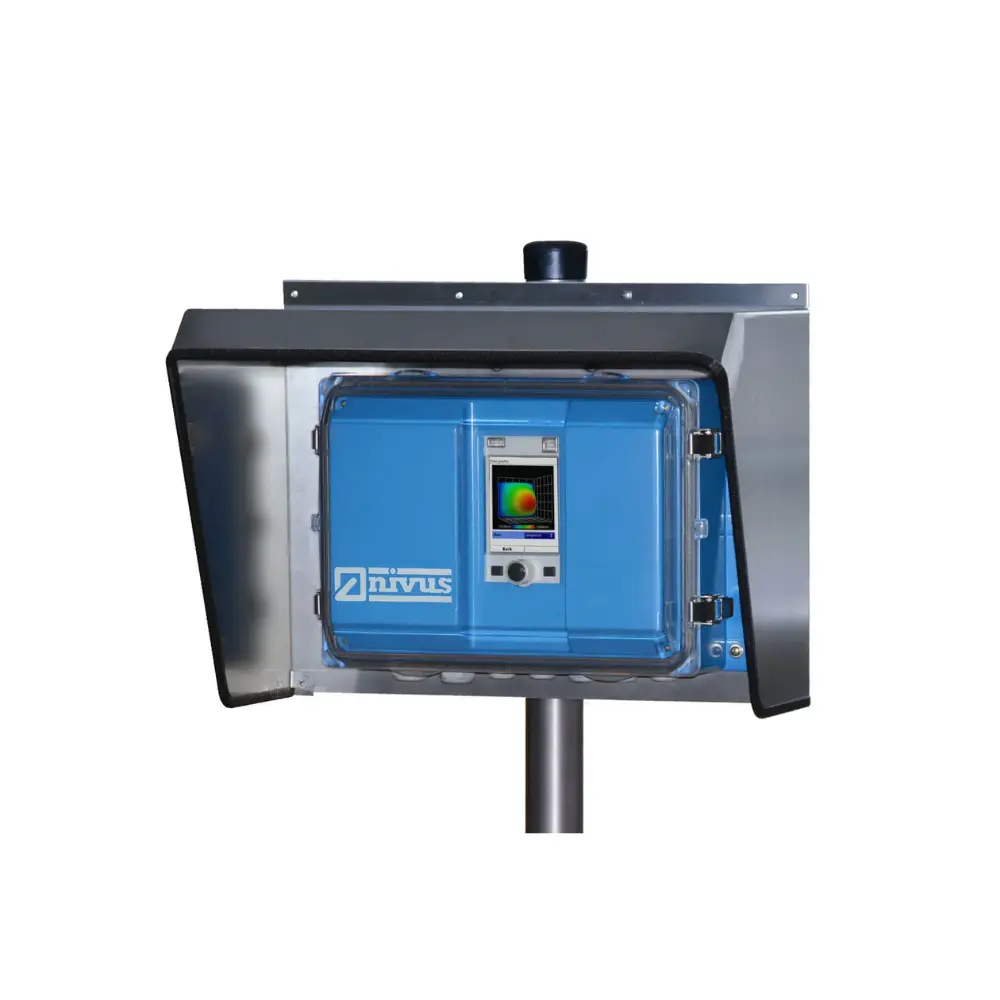

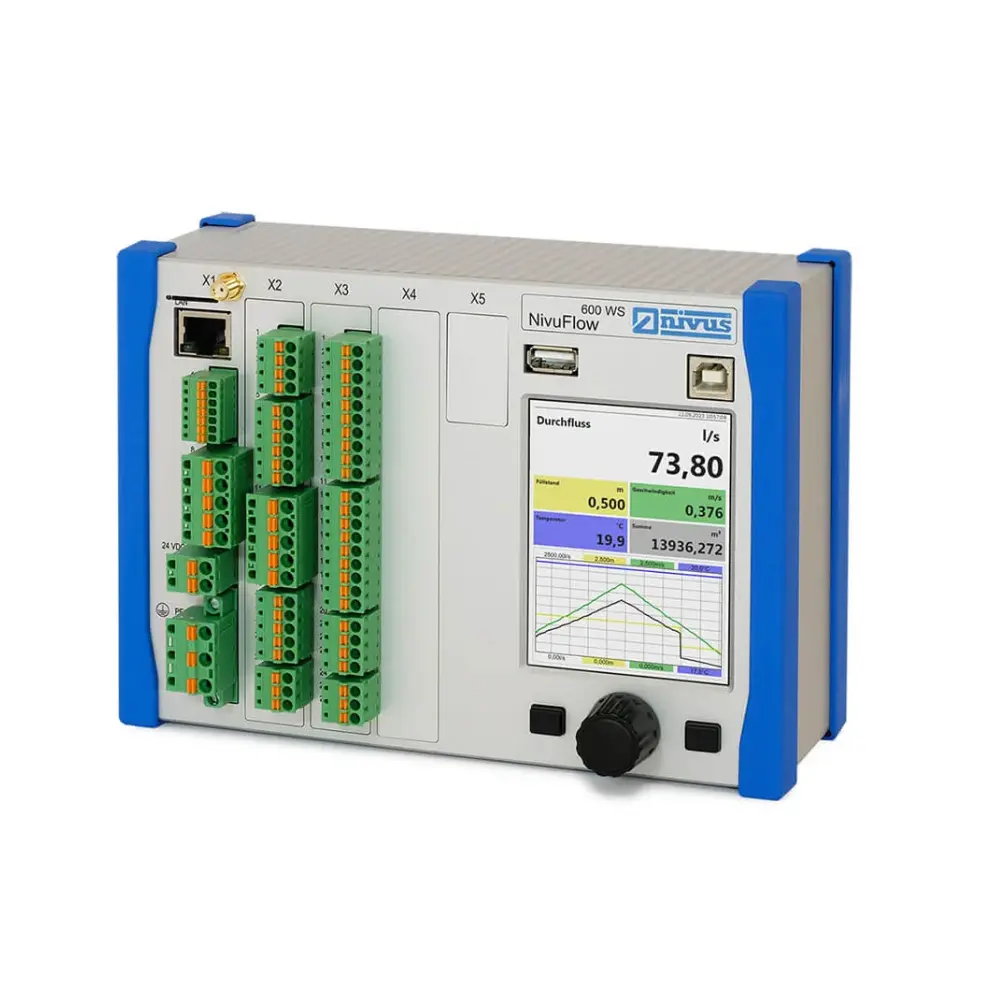

The compact enclosure for DIN rail mounting is suitable for space-saving installation in control cabinets. Special field enclosures are available for use in harsh environmental conditions. A large, easy-to-read daylight display enables the flow meter to be set up quickly and easily. It also offers extended diagnostic options for detailed analysis of running processes directly in the field.

Number of paths	1
Communication	Modbus TCP via network (LAN/WAN, Internet) Modbus RTU via RS485 or RS232 Ethernet TCP/IP
Data memory	1.0 GB internal memory, readout on faceplate via USB stick
Outputs	1x (Type T2) 0/4-20 mA, load 500 Ohm, 12 Bit resolution 1x (Type T2) relay SPDT, load up to 230 V AC/2 A (cos j 0.9), min. switching current 10 mA
Inputs	1x (Type T2) 4-20 mA, with 12 Bit resolution for storage of data from external units, load 91 Ohm 1x (Type T2) digital input
Connection	Plug with spring cage terminal blocks
Operation	Rotary pushbutton, 2 function keys, menus in English, German, French, and others
Display	240 x 320 Pixel, 65536 colours
Max. humidity	80 %, non-condensing
Storage temperature	−30 °C to +80 °C
Operating temperature	DC: −20 °C to +70 °C AC: −20 °C to +65 °C
Weight	Approx. 1150 g
Enclosure material	Aluminium, Plastic
Power consumption	1 relay energised, 230 V AC: (rounded) 14 W
Measurement range	DN 50 – DN 800
Power supply	100 – 240 V AC, -15 % / +10 %, 47 to 63 Hz or 10 – 35 V DC
